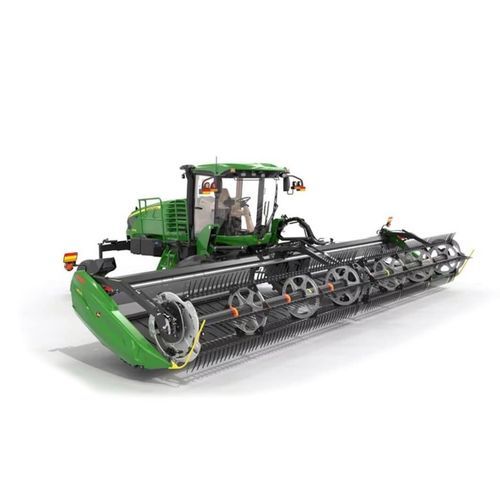

Self-propelled windrower W170

Overview

• Four-point cab suspension improves operator comfort in rough fields.
• Elevated forward cab and large front glass provide enhanced visibility of cutterbar and incoming crop.
• Optional reverser clears plugs on D1500 Draper Platforms for uninterrupted flow.
• Quick-attach platform system enables fast changeover and simplified transport.

Cab suspension
The W170 features a four-point independent suspension using four coil-spring shock absorbers with fore-aft and side-to-side stabilizers to reduce cab roll. Shocks located at each corner allow the entire cab to move vertically from its resting position, delivering improved ride feel during field operations.

Visibility and exterior lighting
The forward and elevated cab position, combined with a wide-front glass, gives the operator clear sightlines across wide platforms. Robust exterior lighting options support effective day and night operation.

• Four LED and two HID front lights to illuminate the cutting area.
• Two rear work lights on the machine rear.
• Four adjustable side/rear-facing work lights on the rear of the cab; left-side light includes a delayed egress feature.
• Flashing hazard lights and optional beacon lights activate in road transport; optional HID and beacon packages available.

Optional reverser
An operator-activated reverser is available to clear plugs on platforms. On D1500 Draper Platforms the reverser slowly reverses the knife drive and the optional hay conditioner (if fitted) to remove obstructions and maintain productivity.

Quick-attach platforms and platform management
Quick-attach compatibility makes attaching and detaching platforms straightforward for fast changeover between hay and grain work and for narrow draper transport. A centralized hose management system groups two hydraulic and one electrical connection in a single location. Connections are compatible with D400 Series draper heads and 100A Series auger heads.

• Optional hydraulic self-alignment center link enables easier attach/detach and is controllable from the cab.
• Pin-on lower lift arms allow quick changeover between draper and auger platforms and transition to narrow transport.
• Adjustable springs and a float-fine adjust (standard) permit on-the-go platform float changes with three memory positions for settings.

Narrow draper transport and ballast
Wider draper platforms can be transported using a ballast box and the D1500 integrated transport system. The ballast box shifts weight to drive tires for improved traction and provides a hitch for towing the D1500 Platform. A wiring harness and hitch pin kit are required for a seven-pin lighting connector on the ballast box.

Precision guidance and AutoTrac
The W170 is AutoTrac Universal 300 (ATU 300) compatible for improved line acquisition and automated steering. The ATU 300 kit can be factory-ordered to make the unit AutoTrac ready. The machine supports StarFire receivers (including StarFire 7500 variants) and can pair with a cornerpost-mounted G5 Universal display for integrated precision-ag monitoring.

AutoTrac Universal 300 kit includes

• Steering kit
• Steering knob parts
• Operator's manual

G5 Universal display
Optional cornerpost-mounted G5 Universal display is available; adapter bracket and harness parts are included in the ATU 300 kit while cab mounting support is provided.

Features summary

• Four-point independent cab suspension with coil-spring shock absorbers and stabilizers.
• Elevated forward cab and wide-front glass for enhanced visibility.
• Multiple LED and HID lighting options with adjustable side/rear and rear work lights.
• Optional reverser for clearing plugs on D1500 Platforms; recommended with hay conditioner.
• Quick-attach platform system with centralized hydraulic/electrical connections; compatible with D400 and 100A Series heads.
• Optional hydraulic self-alignment center link and pin-on lower lift arms for fast platform changes.
• Float-fine adjust standard with on-the-go adjustment and three memory positions.
• Narrow draper transport via ballast box and integrated D1500 transport system.
• Precision-ag compatibility: AutoTrac Universal 300, StarFire receivers, and G5 Universal display support.

Technical specifications

• Product name: W170 Windrower
• Product SKU: w170e
• Product base code: 4052E
• Category: Windrower
• Cab suspension: Four-point independent suspension with four coil-spring shock absorbers and fore-aft and side-to-side stabilizers
• Lighting: Front (4 LED + 2 HID options), 2 rear work lights, 4 adjustable side/rear work lights; optional HID and beacon options
• Optional reverser: Reverses knife drive and optional hay conditioner (on D1500 platforms) to clear plugs
• Platform compatibility: Quick-attach compatible with D1500 Draper Platforms, D400 Series draper heads, and 100A Series auger heads
• Platform features: Centralized hose management (two hydraulic, one electrical), optional hydraulic self-alignment center link, pin-on lower lift arms, spring adjustment, float-fine adjust with three memory positions
• Transport: Ballast box for narrow transport with integrated D1500 transport system; requires wiring harness and hitch pin kit for seven-pin lighting connector
• Precision ag compatibility: AutoTrac Universal 300 (orderable), compatible with StarFire 7500 and newer StarFire receivers, and G5 Universal cornerpost display
