Towed tedder TD13 Series

with hydraulic adjustmentfolding

Overview

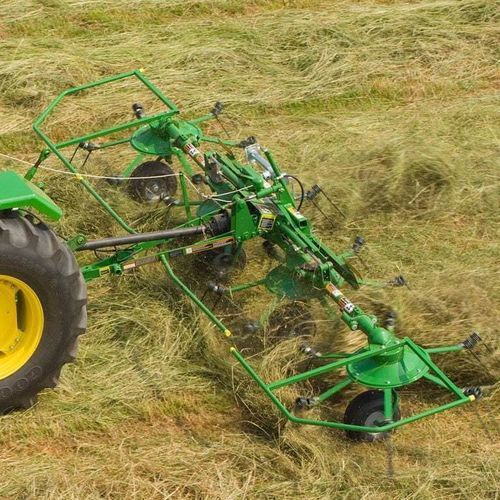

• TD13 Series Hay Tedder from John Deere / Frontier implements designed to condition and spread hay for faster drying and gentle crop handling.
• Key highlighted features: Digidrive™ drive system, hydraulic working angle adjustment, durable steel tines, and large balloon tires for smooth operation.

Features
The exclusive Digidrive® rotor drive fingers on the TD13 Series Hay Tedder are made from forged, case-hardened, heat-treated steel for maximum life and smooth power transmission. Digidrive is a trademark of Kuhn, S.A. Joint Stock Company.

The Frontier™ TD13 Series Hay Tedder comes standard with hydraulic angle adjustment, allowing the operator to set the working angle one time and quickly go from transport to working position using tractor hydraulics from the seat.

The TD13 Series Hay Tedder has flexible, heat-treated steel tines that resist fatigue and provide durability and dependable performance.

The TD13 Series is equipped with large balloon tires that allow smoother operation over irregular or bumpy ground.

Aftermarket/field-installed kits and options described for related models and applications include wide deflector belt kits for feed bunk applications, anti-wrap deflector kits to prevent hay wrapping on tine arms/rotor housings (noted for TD1316), and wheel deflector kits to help prevent hay trapping in light/fluffy hay. A reduction gearbox conversion kit is available for heavy windrows or night windrow applications (noted for TD1316).

Technical specifications

• Width in working position: 5.4 m / 17.7 ft
• Tedding width: 5.0 m / 16.4 ft
• Transport width: 2.8 m / 9.2 ft
• Transport height: 2.7 m / 8.7 ft
• Transport length: 2.3 m / 7.6 ft
• Shipping weight: 456 kg / 1,005 lb
• Minimum tractor power: 20 hp (≈14.9 kW)
• Hydraulic valves (SCVs) required: One
• PTO type: Torque Limiter
• PTO speed: 540 rpm
• Straight, right-hand, left-hand working angles: Standard
• Hitch type: Drawbar
• Rotor quantity: Four
• Tine arms: Quantity per rotor: Six; Type: Round tubular
• Tine height adjustment: Hydraulic tilt
• Tires (working size): 6 ply: 38x15 cm / 15x6 in
• Tire working type: Balloon
• Safety: Safety chain standard; Safety guards standard; SMV standard
• Transport position: Hydraulic vertical fold with hydraulic tilt (standard)
• Set-up time (labor hours): 6
• Warranty time period: 1 year
