Flatbed trailer Trailed Wago

2-axle3-axleagricultural

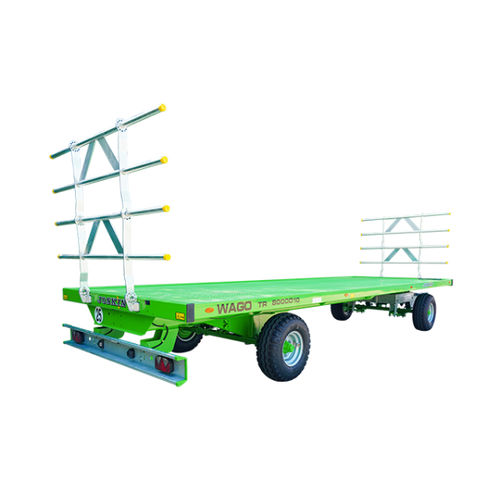

For the transport of straw bales, JOSKIN offers, among others, the trailed WAGO from 8 to 11.7 m long with a technically permissible payload from 10 to 21 t. It is manufactured by means of automated machines (cutting and welding) and with special steel ensuring a high resistance. The structure is made of beams of 120 x 120 at the front and of 300 x 100 at the back, while the floor is made of a folded steel sheet to increase the resistance as much as possible. For a longer lifespan, the bale trailer is fully galvanised. The standard small modular ladders (rounded position: 990 mm; straight position; 1,750 mm) are perfectly suited to both round and square bales. Turntable The trailed WAGO has two running gears: a single axle on turntable at the front combined with a single or double axle (standard with tandem suspension) at the back, depending on the model. The air brakes are part of the standard equipment. Finally, the drawbar is fitted with a spring allowing to hold the drawbar in high position. The turntable (Ø higher than 100 cm) contributes to a higher steering angle for an easier maneuverability. This trailed bale trailer will provide the users with a high driving comfort. The Lowest Bale Trailer on the Market The WAGO trailed bale trailers are designed to have the lowest centre of gravity possible. As a result, the standard floor height does not exceed 1.10 m, even with the standard large-diameter wheels. Furthermore, the suspension leaves on the running gear are located under the axle square in order to further reduce the loading height, and therefore the centre of gravity.
