Grain pusher

Description

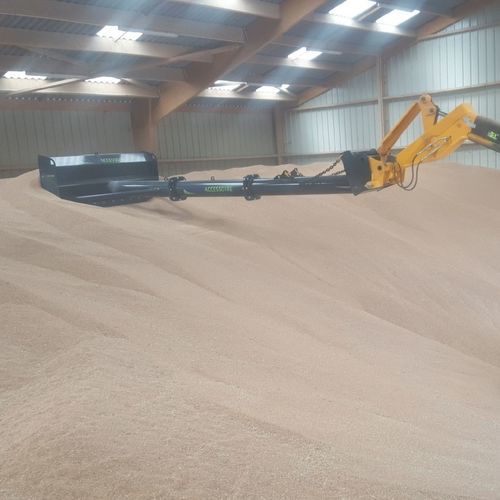

Articulated pile pusher designed to move and reshape piles of cereals, sugar beets and similar bulk crops. Rubber-edged attack blade protects ground and drying grates while facilitating gentle handling of the pile.

Details
The articulated head couples at the push beam. When material accumulates under the blade cap, the pusher lifts, allowing the carrier's compensation/tilt cylinders to raise the unit naturally. The rubber attack edge prevents damage to floors and drying grids. The beam and round reinforcements limit carry-back of grain outside the pile. The boxed (caissonnée) attack blade strengthens resistance to lateral and frontal forces, ensuring reliable forward pushing without closing the roll.

Key features

• Articulated coupling head: protects carrier tilt/tilting cylinders.
• Reinforced rubber base: protects ground and drying grates.
• Double self-centering chain.
• Easy to operate: smooth following of pile, minimal stress on carrier, preserves surfaces. Hand-built, made-to-measure, 100% Franc-comtoise manufacturing on request.

Specifications

• Effective length model 1: 4.00 m
• Effective length model 2: 5.50 m (4.5 m + 1 m extension)
• Standard pusher width: 2.20 m
• XL pusher width: 2.70 m
• Pusher height: 1.00 m
• Weight model 1: 630 kg
• Weight model 2: 750 kg
• Carrier type: loader or telehandler
• Pusher base: reinforced hard rubber 5 cm
• Pusher blade: forward-curved, wrapping profile that does not close; lifts the pusher naturally
• Articulated hitch head: prevents overload on tilt cylinders; pusher arm is free when raised
• Boxed reinforced pusher blade: resistant to torsion and bending
• Side flanks aligned with push direction: no lateral load on hitch heads or booms
• Hitch type: on request (Euro, Manitou, CAT, New Holland, JCB, Merlo, agricultural loaders…)
• Standard colour: grey and orange
