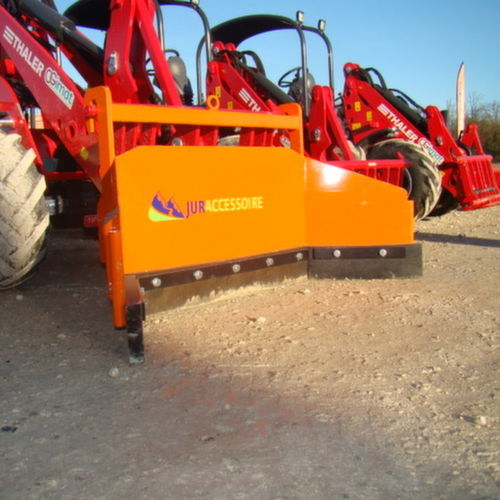

Mounted manure scraper RACL series

rubber

Description
Push-type slurry scraper.

Details
Custom hitch. Height 80 cm or other on request. Works by pushing; not for pulling. Rubber blade 40 mm, hardened reinforced (same concept as snow-plough blade). Highly abrasion-resistant. Hard rubber: can be pressed or loaded. Edges fitted with a solid tube to prevent wear at cubicle edges. Polyurethane paint finish.

Detailed description
Reference: RACLV160 — Width 1.60 m
Reference: RACLV170 — Width 1.70 m
Reference: RACLV180 — Width 1.80 m
Reference: RACLV190 — Width 1.90 m
Reference: RACLV200 — Width 2.00 m
Reference: RACLV210 — Width 2.10 m
Reference: RACLV220 — Width 2.20 m
Reference: RACLV230 — Width 2.30 m
Reference: RACLV240 — Width 2.40 m
Reference: RACLV250 — Width 2.50 m
Euro hitch: Included
Other hitch (farm fork, loader, MX, telehandler, 3-point): Not specified
Reinforced version for telehandler: Not specified
Asymmetric or special scraper: Not specified

Characteristics / technical specifications

• Height: 80 cm (custom sizes possible)
• Mode of operation: pushing (not pulling)
• Scraper: 40 mm rubber, hardened reinforced, very abrasion-resistant
• Edges: solid tube to limit wear
• Finish: polyurethane paint
• Euro hitch: included
• Available widths: from 1.60 m to 2.50 m (references RACLV160 to RACLV250)
