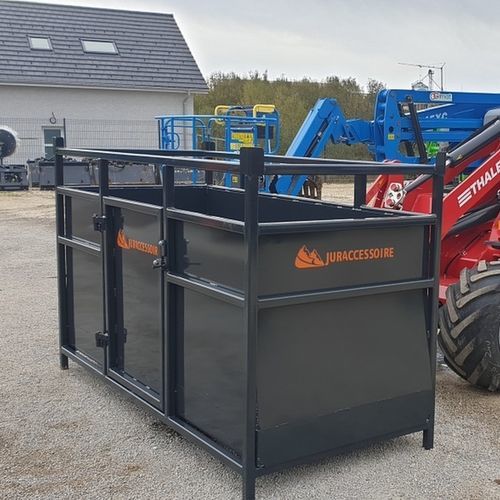

Transport cage PM series

Summary
Basket for transporting animals on a loader. Front inspection door. Euro or other couplings available.

Use and construction
Designed for lifting and transporting small animals (calves or sheep…). Square tubular frame, front inspection hatch, solid basket floor and ribbed sheet sides, welded coupling (type to be defined). Not suitable for lifting people (EN 280 standard). Also usable for lifting materials.

Reference table
Reference : PM130 — 1.30 m wide / 1600 L / 198 kg / Capacity 600 Kg
Reference : PM170 — 1.70 m wide / 2100 L / 250 kg / Capacity 600 Kg
Reference : PM220 — 2.20 m wide / 2700 L / 300 kg / Capacity 700 Kg (Recommended model)
Reference : PM250 — 2.50 m wide / 3100 L / 360 kg / Capacity 700 Kg
Reference : PM300 — 3.00 m wide / 3720 L / 430 kg / Capacity 900 Kg

Options and particularities
Side inspection hatch (chassis reinforcement) — unspecified
Sleeve for fork mounting — unspecified
Livestock version (side closed up to 90 cm, front door with self-locking latch) — unspecified
Included couplings: Euro, MANITOU, CAT, MERLO, MX, BOBCAT TELESCO, JCBQ FIT
Other couplings — unspecified
Custom manufacturing (gates, height, width, …) — unspecified
Hydraulically tiltable basket right/left — unspecified

Characteristics / technical specifications

• Use: Transport and lifting of small animals (calves, sheep); also suitable for lifting materials
• Standard: Not suitable for lifting people (EN 280)
• Construction: Square tubular frame; solid floor; ribbed sheet metal sides; front inspection hatch
• Coupling: Welded coupling (type to define); included couplings: Euro, MANITOU, CAT, MERLO, MX, BOBCAT TELESCO, JCBQ FIT
• Modeled references: PM130, PM170, PM220 (recommended), PM250, PM300
• Dimensions and capacities (by reference): PM130 = 1.30 m / 1600 L / 198 kg / capacity 600 kg; PM170 = 1.70 m / 2100 L / 250 kg / capacity 600 kg; PM220 = 2.20 m / 2700 L / 300 kg / capacity 700 kg; PM250 = 2.50 m / 3100 L / 360 kg / capacity 700 kg; PM300 = 3.00 m / 3720 L / 430 kg / capacity 900 kg
• Mentioned options (details not specified): side inspection hatch with chassis reinforcement, sleeve for fork mounting, partially closed livestock version, other couplings, custom manufacturing, hydraulically tiltable basket right/left
