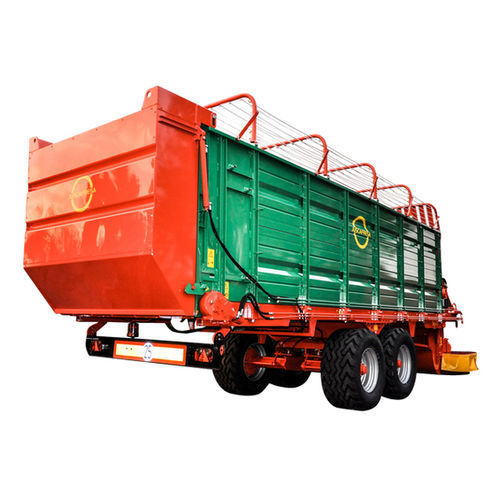

Loader wagon THH PLUS series
mounted2-axleforage

loader wagon
loader wagon
loader wagon
loader wagon
loader wagon
loader wagon
loader wagon
Add to favorites
Compare this product


Characteristics

Construction
self-loading
Type
mounted
Number of axles
2-axle
Application
forage, silage
Brake system
with hydraulic braking
Other characteristic
with mower
Load volume

Min.: 23 m³
(812.237 ft³)

Max.: 33 m³
(1,165.384 ft³)

Loading case lenght

4,780 mm, 5,780 mm, 6,780 mm
(188.2 in, 227.6 in, 266.9 in)

Loading case width

2,000 mm
(78.7 in)

Description

Zero grazer agricultural trailers Juscafresa. Destined for mowing and forage transport. Stands out for its system that starts with the movement of the plates that creates air turbulance that helps to move the feed into the bottom of the elevator. During the mower operation, the elevator put the forage on the front part of the trailer, and then the floor chains moves the material from the front to the back part of the trailer. Standard equipped with: Hydraulic installation system to use the elevator with refrigeration system Fodder hydraulic back cover compass type Cutting width 2100 mm Hydraulically displaceable drawbar ECI100: Square rocker axle 100 mm, 1900 track, 10 bolts, brakes 400x80 Mowing system ​The process consists of cutting the fodder by the mower plates which at the same time makes an air turbulence that helps the entrance of the fodder to the bottom of the elevator. ​The elevator has the function of raising the cut forage towards the front part of the trailer where the material will accumulate and will move towards the rear by the drag chains. Plate mower ​The top plate has three blades that create air turbulance that helps to move the feed into the bottom of the elevator. ​The lower plates are entirely independent from the top plates and turning by the friction on the ground. Mower ​Mower with 1900mm of cutting width Hydraulic independent system ​Hydraulic independent system to use the elevator and dispenser. ​​The mower has one or two springs providing suspension so it can adapt to the terrain, and therefore avoid excessive friction of the plates on the ground.
