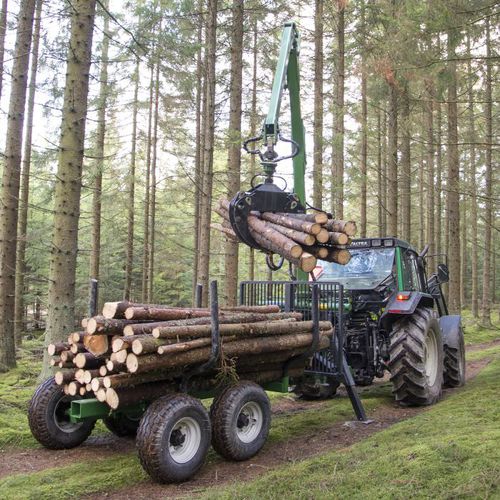

2-axle trailer 21-SV80/GL53

forestry8 tonwith crane

Powerfully dimensioned rig with optimum manoeuvrability and maximum range of movement. • Ground clearance 50 cm • Crane reach 5.3 m • Lifting capacity at 5.3 m: 400 kg • Fully rotating rotator and articulated steering are standard • Gripping area 0.21 m² Forestry trailer and crane created by our designers to be efficient in the forest without compromising on safety. The safety headboard is more than sufficiently sized to protect the operator. All hydraulics and hoses are built in and guarded to minimise the risk of external damage. Plenty of free space below the trailer to allow it to easily pass over any obstacles and a terrain-friendly bogie. The trailer has a low centre of gravity and hydraulic stabilisers for stable loading, unloading and operation. Articulated steering with one cylinder. The crane is equipped with a bent lifting arm providing maximum lifting capacity in flat ground positions. Top-mounted lift cylinders in protected position. The interior hoses in the lifting arm and articulated boom are protected from external damage during operation. Double rotation cylinders. The trailer is equipped as standard with winch, articulated tow bar, parking jack, 2-lever valve block, hydraulic stabilisers, fully rotating rotator, rotator link with brake. When you buy a Kellfri timber trailer, it will be supplied with oil in the system, fully assembled, test driven and ready for use. The forestry trailer requires one return and one double-acting hydraulic outlet on the tractor. The forestry trailer is supplied with four hydraulic ½ inch, quick coupling male hoses. The trailer can be additionally equipped with a hydraulic brake.
