Mobile grain blower SUC 300

Overview
Kongskilde grain suction blowers SUC and SupraVac provide pneumatic conveying solutions for farms and commercial grain operations. Available in electric and tractor PTO-driven versions, they handle grain pickup, silo loading/emptying, truck/wagon loading and in-field vacuum loading across a wide capacity range.

How grain suction blowers work
These units generate an airflow that draws grain into a suction cyclone where the grain is separated from the air. Grain is discharged via a rotary valve onto the pressure side pipeline for gentle horizontal, vertical and corner conveying, reducing damage and product loss.

Benefits

• High transport capacity covering small mobile units up to the SupraVac 2000 for high-volume needs
• Choice of power: electric motor or tractor PTO to suit farm or site conditions
• Flexible pickup and conveying: field pickup, silo and on-floor storage handling with flexible piping
• Mobility options: trolley-mounted mobile units, three-point hitch and trailer types for field and road use
• Energy-efficient design and scalable connection to existing pipe systems

Models and key features
SUC-E (Electric powered)
Electrically driven SUC-E units are suited to indoor use and mobile trolley models. Common features include belt transmission protecting the drive, control cabinets for automatic operation and larger stationary variants for higher capacities.

• Typical models: SUC 100 E, SUC 150 E, SUC 200 E, SUC 300 E, SUC 500 E
• Capacities: mobile models up to ~33 t/h; stationary models up to ~64 t/h (larger available)
• Motor power examples (blower): 7.5 kW (10 hp) to 37 kW (50 hp)
• Mobile trolley versions for indoor/outdoor movement

SUC-T (Tractor powered, three-point hitch)
SUC-T models are PTO-driven three-point hitch units for sites without electric supply. They feature compact design, automatic air control and an option for pressure feeding via direct rotary valve to increase capacity by ~20%.

• Typical models: SUC 300T, SUC 500T, SUC 700T
• Capacity examples: up to ~44 t/h depending on model
• Recommended tractor PTO power examples: 34 kW (45 hp) to 62 kW (85 hp)

SUC-TR (Tractor powered, trailer type)
SUC-TR units are PTO-driven pull-type trailers designed for high-capacity loading and conveyance to storage. Standard loading equipment and tool-free belt tensioning facilitate field and transport use.

• Typical models: SUC 500TR, SUC 700TR, SUC 1000TR
• Capacity examples: up to ~64 t/h depending on model
• Recommended tractor PTO power examples: 48 kW (65 hp) to 90 kW (120 hp)

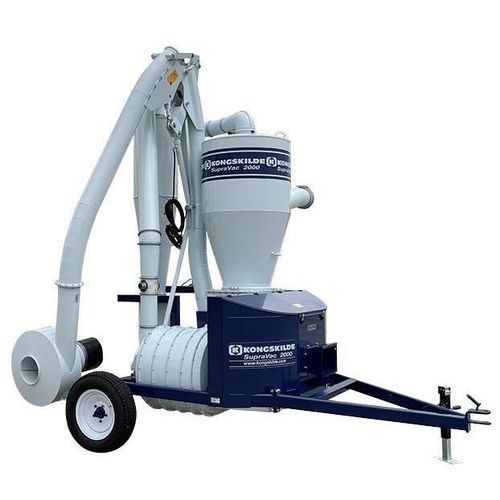

SupraVac 2000 (Tractor powered)
SupraVac 2000 is the largest tractor-powered suction blower with very high capacity and a hydraulically operated folding truck load-out boom for fast loading of large vehicles. Optional transport boxes are available for suction heads and pipe components.

• Capacity: up to ~5,000 bu/h (≈120 t/h)
• Required power: approximately 170 hp PTO
• Features: hydraulic folding boom, easy pipe connection, optional transport boxes

Model comparison (selected data)
SUC-E (selected models)
SUC 100 E | Motor power (blower): 7.5 kW / 10 hp | Weight incl. motors: 210 kg | Capacity, max: 4.5 t/h
SUC 150 E | Motor power (blower): 11 kW / 15 hp | Weight incl. motors: 243 kg | Capacity, max: 8 t/h
SUC 200 E | Motor power (blower): 15 kW / 20 hp | Weight incl. motors: 285 kg | Capacity, max: 10 t/h
SUC 300 E | Motor power (blower): 22 kW / 30 hp | Weight incl. motors: 477 kg | Capacity, max: 14 t/h
SUC 500 E | Motor power (blower): 37 kW / 50 hp | Weight incl. motors: 668 kg | Capacity, max: 31.2 t/h

SUC-T (selected models)
SUC 300 T | Recommended min. tractor PTO: 34 kW / 45 hp | Weight: 350 kg | Capacity, max: 20 t/h
SUC 500 T | Recommended min. tractor PTO: 48 kW / 65 hp | Weight: 595 kg | Capacity, max: 33 t/h
SUC 700 T | Recommended min. tractor PTO: 62 kW / 85 hp | Weight: 711 kg | Capacity, max: 44 t/h

SUC-TR (selected models)
SUC 500 TR | Recommended min. tractor PTO: 48 kW / 65 hp | Weight: 820 kg | Capacity, max: 20 t/h
SUC 700 TR | Recommended min. tractor PTO: 62 kW / 85 hp | Weight: 770 kg | Capacity, max: 44 t/h
SUC 1000 TR | Recommended min. tractor PTO: 90 kW / 120 hp | Weight: 1050 kg | Capacity, max: 64 t/h

Downloads
Brochures, user manuals and spare parts lists are available for SUC and SupraVac series, including model-specific manuals and assembly instructions.

Applications

• Pneumatic loading and emptying of flat-bottom and hopper silos
• Filling and emptying on-floor storage systems
• Loading and unloading trucks, wagons and ships
• In-field vacuum loading
• Grain silo cleaning and residue removal with vacuum systems

Technical specifications

• Series: SUC (SUC-E, SUC-T, SUC-TR) and SupraVac 2000
• Power options: electric motor (SUC-E) and tractor PTO (SUC-T, SUC-TR, SupraVac)
• Capacity range: ~4.5 t/h up to ~120 t/h (SupraVac 2000)
• Motor power examples (blower): 7.5 kW / 10 hp up to 37 kW / 50 hp for SUC-E
• Recommended tractor PTO: ~34 kW / 45 hp up to ~170 hp (model dependent)
• Weights: SUC-E mobile 210–668 kg; SUC-T/TR 350–1,050 kg (model dependent)
• Key components: suction cyclone, rotary valve, pressure-side pipeline, optional hydraulic loading boom (SupraVac)
• Mobility: trolley-mounted SUC-E, three-point hitch SUC-T, trailer SUC-TR and SupraVac for road and field transport
