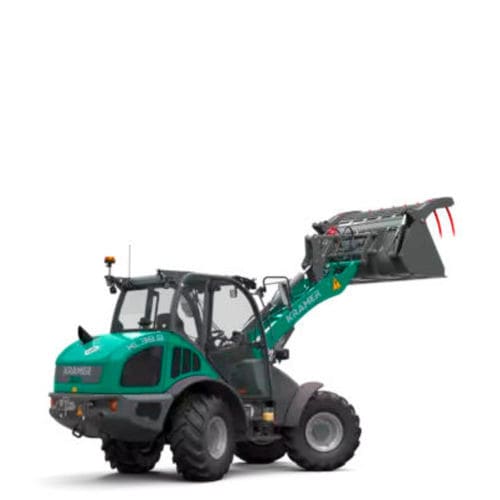

Rubber-tired loader KL38.8

with cab

Product overview
The Kramer KL38.8 is a wheel loader in the Premium 8 Series featuring a one-piece frame. The machine delivers high manoeuvrability, strong performance and operator comfort. Optional equipment includes ecospeed transmission, EC tractor approval and trailer coupling. The modern cab design includes a fold-down armrest for improved ergonomics and comfort.

Benefits at a glance

• Optimal tractor use: optional trailer coupling and EC tractor approval
• Optional 7-inch LCD display with configurable screens, settings and assistance functions
• Smart Attach: factory-installed full-hydraulic quickhitch plate for fast, safe hydraulic attachment changes
• Fuel savings: four driving modes (Power, Eco, Road, CSD) can reduce fuel consumption by up to 10%
• Smart Steering: adjustable steering turns for greater steering angle with fewer movements

Assistance systems

• Vehicle equipped with multiple assistance systems
• Simple and convenient operation, even for less experienced operators
• Examples: attachment angle indicator on the display, bucket and loader feedback

Operating modes

• Operator can select Power, Eco, Road and CSD (Constant Speed Drive)
• Driving mode selected via a push button
• Up to 10% fuel saving combined with reduced noise for improved operator comfort

Smart Attach (fully hydraulic quickhitch system)

• Hydraulically driven attachments engage with automatic hydraulic circuit connection without the operator needing to exit the cab
• Increased productivity through time and cost savings
• Attachments changed within seconds for full operational flexibility

Entry and exit

• Access from both sides for increased safety and flexibility

7-inch LCD display

• All relevant machine data consolidated on the display
• Machine parameters operated and adjusted via a jog dial
• Safe jog dial operation possible while driving

Further highlights
Safety

• All-wheel steering: high stability even at full steering lock due to undivided frame
• Steering angles up to 40° on both front and rear axles for maximum manoeuvrability
• Constant payload independent of steering angle for consistent leverage ratios
• One-piece vehicle frame: high stability on rough terrain
• Color-coded switches to minimise operator errors and simplify fleet handling

Variety

• EC tractor approval: usable as a towing vehicle for trailer transport with materials
• Crab steering for manoeuvring in confined spaces and gentle travel on sensitive surfaces
• Hydraulic two-circuit trailer brake: enables towing hydraulic-braked trailers at the maximum approved trailer load

Comfort

• Panoramic cab with extended front windscreen and slim pillars for optimal attachment visibility
• Low-speed device and hand throttle for simple operation of attachments requiring constant engine speed at low travel speed

Eco-friendliness

• Auto-stop: automatic engine shutdown after a preset time to save fuel and reduce CO2 emissions

Performance

• ecospeed: variable hydrostatic overdrive transmission for continuous acceleration from 0 to 40 km/h without interruption of tractive force
• Full pushing power and traction in all work situations with optimal interaction of engine and drivetrain
• Gear pump with LUDV: load-independent flow distribution with load-sensing characteristics enabling multiple hydraulic functions simultaneously

Maintenance

• Easy maintenance access via wide-opening hood and additional service openings
• Automatic central lubrication system for extended service life and reduced maintenance effort

Efficiency

• Automatic bucket return for repetitive loading tasks; desired position can be set and stored
• Smart Steering: speed-independent steering support reduces steering effort and enables fast turning manoeuvres

Quality

• Two-layer paint on the axles for improved corrosion protection and durability

Technical specifications

• Model: KL38.8 (Premium 8 Series)
• Frame: one-piece vehicle frame
• Optional transmission: ecospeed (variable hydrostatic overdrive, 0–40 km/h)
• Driving modes: Power, Eco, Road, CSD (Constant Speed Drive)
• Display: optional 7" LCD with jog dial
• Quickhitch: series full-hydraulic Smart Attach
• Steering: all-wheel steering with up to 40° on front and rear axles; crab steering available
• Trailer equipment: optional trailer coupling, EC tractor approval, hydraulic two-circuit trailer brake
• Hydraulics: gear pump with LUDV (load-independent distribution, load-sensing)
• Cabin: panoramic cabin, entry/exit from both sides, fold-down armrest
• Fuel / emissions: auto-stop function, fuel savings up to approx. 10% depending on mode
• Maintenance features: wide-opening hood, vertically mounted filters, automatic central lubrication system
• Durability: two-layer paintwork on axles
