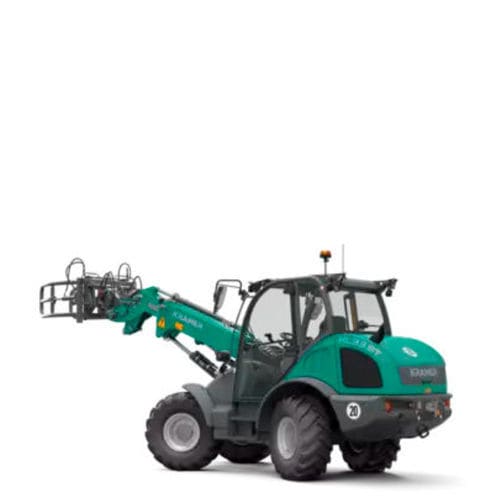

Telescopic loader KL33.8T

with cab

Overview
The Kramer telescopic wheel loader KL33.8T is supplied with a 55 kW Deutz engine as standard. Its narrow-box telescopic loading system improves forward visibility while providing extended reach, stacking and dumping heights. The one-piece vehicle frame guarantees stable payload and high structural stability.

Benefits at a glance

• Telescopic loading system: Extended reach and increased stacking/dumping heights with optimized frontal visibility
• Working hydraulics: Load-independent flow distribution (LUDV) enables simultaneous hydraulic functions for fast cycles
• Panoramic cabin: Optional panoramic cabin maximizes upward and attachment visibility
• Four driving modes: Power, Eco, Road and CSD allow task-specific performance and fuel savings
• Smart Attach: Series-installed full-hydraulic quickhitch plate for safe, rapid attachment changes

Assistance systems

• Equipped with multiple assistance systems to support safe operation
• Intuitive controls reduce learning time for inexperienced operators
• Examples include attachment angle indicator and bucket/loader feedback on the display

Operating modes

• Selectable modes: Power, Eco, Road and CSD (Constant Speed Drive)
• One-button selection adapts engine and drive behaviour to the application
• Up to 10% fuel savings possible while maintaining operator comfort and noise reduction

Smart Attach (fully hydraulic quickhitch system)

• Hydraulically driven attachments couple automatically without exiting the cab
• Reduced downtime and increased productivity thanks to seconds‑scale attachment changes

Entry and exit from both sides

• Safe boarding from the side away from traffic
• Access from both sides increases operational flexibility

7" LCD display

• All relevant machine data displayed at a glance
• Settings and parameters adjusted intuitively via the jog dial
• Jog dial operation possible and safe even while driving

Further Highlights
Safety

• All-wheel steering and undivided frame ensure high stability even at full steering lock
• Steering angles up to 40° on both front and rear axles for maximum manoeuvrability
• Consistent payload independent of steering angle for constant leverage ratios
• One-piece frame for high stability on rough terrain
• Color-coded switches reduce operator errors

Variety

• EC tractor approval where applicable for towing operations and road travel with attachments
• Crab steering for precise manoeuvring in confined areas and gentle operation on sensitive surfaces
• Hydraulic two-circuit trailer brake for towing hydraulic-braked trailers and using the vehicle’s approved trailer load

Comfort

• Panoramic front glazing and slim pillars for optimal attachment view and upward visibility
• Low-speed device and hand throttle for attachments requiring constant rpm and precise low travel speed

Eco-friendliness

• Auto-stop: automatic engine shutdown after a preset time to save fuel and reduce emissions

Performance

• ecospeed: variable hydrostatic overdrive transmission enabling smooth acceleration from 0 to 40 km/h without loss of tractive force
• Gear pump with LUDV characteristics for simultaneous hydraulic functions and fast loading cycles

Maintenance

• Wide-opening hood and accessible components for easy service and fill-level checks
• Automatic central lubrication system to extend service intervals and reduce maintenance time

Efficiency

• Automatic bucket return with programmable positions for repetitive loading tasks
• Smart Steering: speed-independent steering support reduces steering wheel rotations at low speed for fast turning

Quality

• Two-layer paint on axles for improved corrosion protection and durability

Technical specifications

• Model: KL33.8T
• Engine: 55 kW Deutz (standard)
• Telescopic loading system with narrow-box structure for improved visibility, reach, stacking and dumping height
• One-piece vehicle frame for constant payload and high stability
• Working hydraulics with load-independent flow distribution (LUDV)
• Fully hydraulic quickhitch plate (Smart Attach)
• Operator modes: Power, Eco, Road, CSD (Constant Speed Drive)
• Panoramic cabin available (optional)
• 7" LCD display with jog dial
• ecospeed variable hydrostatic overdrive transmission (0–40 km/h)
• Hydraulic two-circuit trailer brake
• EC tractor approval (where applicable)
• Automatic central lubrication and easy maintenance access
• Auto-stop engine shutdown
