Wooden pallet collar

galvanised steelstoragetransport

Overview

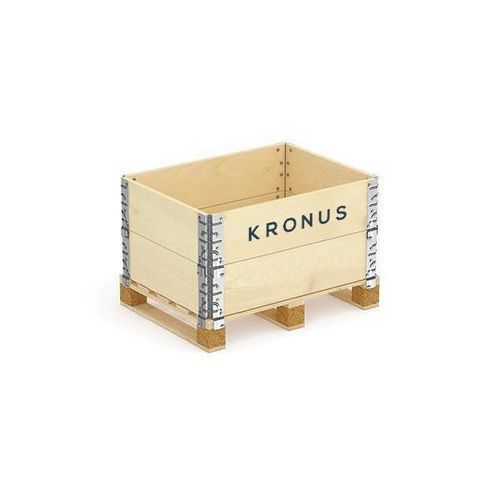

Pallet collars manufactured by KRONUS are wooden packaging elements designed to protect, stack and stabilise cargo during storage and transport. Available in 1-board and 2-board constructions, these collars are TÜV Rheinland tested for load capacity and breaking force.

Boards
Customers can choose between 1-board and 2-board constructions depending on required stiffness and durability.

• 1-board
• 2-board

Pallet collar height
Standard heights: 100 mm, 200 mm, 300 mm, 400 mm. Non-standard heights can be produced on request to meet specific packing needs.

Pallet collar size
KRONUS supplies standard and custom sizes with side lengths configurable from 300 mm to 3500 mm.

• Common standard sizes: 600 x 800 mm, 800 x 1200 mm, 1000 x 1200 mm
• Custom side lengths available across the 300–3500 mm range

6-hinged pallet collars
6-hinged variants fold flat to reduce transport and storage volume, facilitate handling in narrow spaces and speed up assembly/disassembly operations.

Personalisation
KRONUS offers painting of parts and stamping of company logos to support identification and traceability. Colour options and hinge/box customisations are available.

• Hinge colour: various options (examples: red, green, blue, black)
• Box colour: multiple solid colours
• Trademark/logo: monochrome or multi-colour stamping

Certification
Loading capacity and breaking force are tested and certified by TÜV Rheinland, ensuring compliance with recognised safety standards.

Usage & advantages

• Environmentally friendly wooden packaging solution
• Space saving when folded or transported, especially with 6-hinged collars
• Quick assembly and fold-down functionality
• Customisable to specific cargo protection requirements

Characteristics
Material: wooden
Other characteristic: storage, transport, reusable, custom-made
Height: 100 mm, 200 mm, 300 mm, 400 mm (3.937 in, 7.874 in, 11.811 in, 15.748 in)
Length: Min.: 300 mm (11.811 in)
Max.: 3,500 mm (137.795 in)

Characteristics / technical specifications

• Product type: Wooden pallet collars (customisable)
• Board options: 1-board or 2-board constructions
• Standard collar heights: 100 mm, 200 mm, 300 mm, 400 mm (custom heights possible)
• Side length range: 300–3500 mm (customisable)
• Standard side dimensions: 600 x 800 mm; 800 x 1200 mm; 1000 x 1200 mm
• 6-hinged variant: foldable, space-optimising design
• Customisation options: hinge colour, box colour, painted parts, stamped logo (monochrome or multi-colour)
• Testing & certification: Loading capacity and breaking force certified by TÜV Rheinland
• Intended uses: Protection of cargo during transportation and storage; warehouse space optimisation
