Dump trailer DT seriestippingtandem axleagricultural
Add to favorites
Compare this product
Characteristics
- Construction
- dump, tipping
- Number of axles
- tandem axle
- Application
- agricultural
- Payload
- 14 tons, 16 ton
- Other characteristic
- heavy-duty
- Empty weight
6,300 kg, 6,600 kg
(13,889.1 lb, 14,550.5 lb)- Load volume
17.1 m³, 18.8 m³
(603.881 ft³, 663.916 ft³)- Loading case lenght
5,520 mm, 6,200 mm
(217.3 in, 244.1 in)- Loading case width
2,300 mm
(90.6 in)- Loading case hight
1,450 mm
(57.1 in)
Description

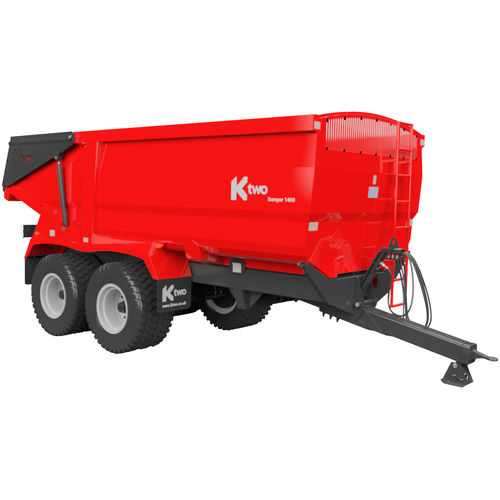

The Ktwo Roadeo Dumper trailer is a high quality agricultural dumper with a high angled tipping point.
ROADEO DUMPER DT 1400
-Sprung drawbar
-10 stud Commercial axles with 420x180mm brakes
-100mm wide multi leaf axle spring set
-Hydraulic tailgate
-LED lights
ROADEO DUMPER DT 1600
-Sprung drawbar
-10 stud Commercial axles with 420x180mm brakes
-100mm wide multi leaf axle spring set
-Hydraulic tailgate
-LED lights
STANDARD SPECIFICATIONS
ANCILLARY EQUIPMENT
-LED lighting all round includuing twin rear light clusters, side markers and strobe beacon
-Bolt on rear light unit guards
-Removable drawbar skid with stowage point
-Front hose arm for convenient stowage of all hydraulic, air and electrical lines
CHASSIS
-Fully welded construction
-Sprung drawbar on all models for an improved ride
