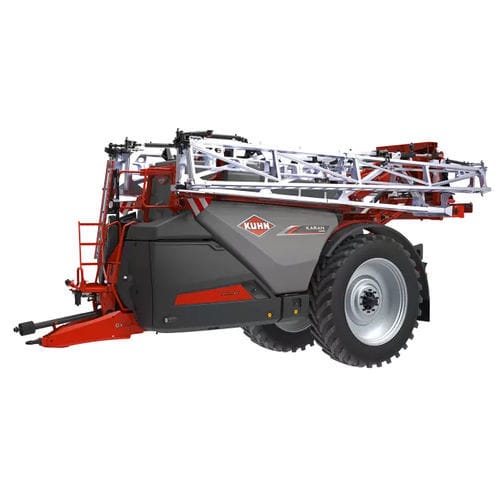

Towed sprayer KARAN

hydraulicfolding armswide

Overview
The trailed sprayer KARAN is engineered for performance, precision and durability in medium to large farms and contracting operations. Available with 4,500, 5,200 and 6,000 L tanks and aluminium booms up to 39 m, KARAN integrates the EAGLE boom-following system, efficient filling and incorporation solutions (DILUSET, MANUSET, incorporator), automated rinsing and maintenance-friendly features (removable roof and sump, quick-release pump).

Performance

• EAGLE: highly responsive boom-following system maintaining application height at speed (enables working speeds up to 25 km/h).
• Aluminium booms TR4 and RHA3: broad width range (up to 39 m) for high productivity.
• Tanks 4,500 / 5,200 / 6,000 L with high filling flow (PM280 / PM560 pumps, up to 550 L/min) to reduce filling time.
• Agitation and rapid incorporation: liquid incorporator up to 220 L/min (powder capacity 40 kg/min) to prepare spray solutions quickly.
• Continuous circulation systems and AUTOSPRAY (PWM) to maintain stable pressure and droplet size, with nozzle-by-nozzle shut-off for improved accuracy and drift reduction.

Operator comfort

• MANUSET (basic station with MT01) and DILUSET (automated station with MT30 touchscreen): automate filling, agitation, rinsing and dilution functions.
• Cab interface ISOBUS-compatible (CCI 60 / 800 / 1200 terminals and CCI A3 joystick) for ergonomic control and advanced functions (section shut-off, rate modulation).
• Maneuverability: optimized overall length (e.g. 5.00 m ring-axle on KARAN 5200/6000), TRACK MATIC steering axle (steering angle up to 28°) for easier field turning.
• Standard mechanical suspension; optional hydropneumatic suspension with automatic load compensation for improved comfort on road and field.
• Enhanced lighting (boom LED worklights, LED reversing lights) for low-light operations.

Protection (crops, soil and operator)

• AUTOSPRAY and continuous circulation systems (CCH, CCE, MULTISPRAY DUO, AUTOSPRAY): nozzle-by-nozzle shut-off, dose modulation and curve compensation to limit overdosing and drift.
• CTS (Closed Transfer System) pre-arranged: contactless transfer of jerrycans to limit operator exposure to phytosanitary products.
• Full guards protecting components and the filling station while preserving maintenance access.
• Appropriate tyres (VF option possible) and standard mudguards to reduce soil compaction and protect the machine; wide tyre options depending on conditions.
• 360° tank washers, 800 L clean water tank and automated rinsing cycle for fast, complete and safe rinsing (DILUSET).

Key equipment & major options

• DILUSET: automated filling station with MT30 touchscreen (automated filling, agitation, rinsing, dilution).
• MANUSET: simplified station (MT01), 3-way valves (suction, discharge, proportional agitation) for ergonomic operation.
• High-capacity incorporator (liquid intake 220 L/min; powders 40 kg/min).
• PM280 / PM560 piston diaphragm pumps (filling up to ~550 L/min depending on configuration).
• TR4 / RHA3 aluminium booms available, widths up to 39 m (RHA3).
• Hydraulic functions: fold/unfold, pendular lock, lift/lower, tilt; PROFOLD 2 / PROFOLD 3 modes.
• Circulation systems: CCH (low pressure, section management), CCE (high pressure, nozzle control), MULTISPRAY DUO, AUTOSPRAY (PWM).
• ISOBUS compatibility: CCI terminals (CCI 60 / 800 / 1200), CCI A3 joystick, KUHN applications for section control and variable rate.
• TRACK MATIC steering axle (up to 28° steering), optional hydropneumatic suspension.
• End-nozzle holders (option) for working width extension or double/triple overlap at field edges.
• Storage: sealed lockers (standard 2x22 L; options 2x65 L depending on model), hose storage, side compartments.

Characteristics / technical specifications

• Boom widths (m): 24 / 27 / 28 / 30 / 32 / 33 / 36 / 38 / 39
• Boom following system: EAGLE
• Number of boom arms: 2 (TR4) or 3 (RHA3)
• Boom material: aluminium
• Tank capacity (L): 4,500 - 6,000
• Tank material: polyethylene
• Actual tank capacity (L): 4,725 - 6,300 (depending on version)
• Clean/rinse tank capacity (L): 800
• Pumps offered: piston diaphragm PM280 / PM560
• Pump flow (L/min): 280 or 500 (depending on pump)
• Max pressure (bar): typ. 8 (depending on configuration)
• Nozzle sections (m): 8
• Ring-axle length (m): 1.80 - 2.25 (depending on model)
• Overall width (m): e.g. 4.50 (KARAN 4500) – 5.00 (KARAN 6000) (indicative)
• Transport height (m): approx. 2.55
• Indicative empty weight (kg): 4,200 - 6,500 (depending on version and options)
