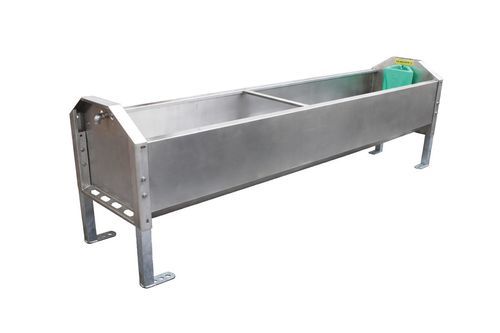

Cattle trough DAIRYNOX 400

stainless steelfloor-mountedmulti-access

Summary
Monobloc stainless steel trough of approximately 400 litres designed to distribute warm water recovered from a milk pre-cooler. Delivers tempered water (around 16-18°C) beneficial for dairy cows' drinking behaviour, reducing thermoregulatory effort and contributing to milk production.

Operation and benefits
A pre-cooler lowers milk temperature by transferring heat to water: roughly 1.5 L of water are required to cool 1 L of milk. The DAIRYNOX 400 reuses this warmed water for drinking. Water leaving the pre-cooler is typically reduced by 15-25°C and is around 17°C, a temperature particularly appreciated by cows, especially in winter. Several studies (Pfundheller 2000, Wilks 1990, Anderson 1984, CIAL des Ardennes 1979/80, Himmei 1964, Kellner 1916) report increases in water intake, feed intake and milk yield with tempered drinking water.

Main features

• Usable capacity: 400 litres
• Very rigid monobloc stainless steel tank-frame
• Double folded inner rim to limit waste
• Large access 220 x 43 cm allowing 4 cows simultaneously (up to 8 if accessed from both sides)
• Large drain Ø100 mm with integrated overflow (2 holes Ø27 mm)
• Panel pass-through plug Ø 1¼ for linking a second DAIRYNOX 400
• Optional valve kit (kit A631) to convert the trough into a conventional drinker: the network supplies water when pre-cooler warm water is exhausted
• Installation: must be mounted on feet (galvanized feet kit Ref. D201 supplied separately)

Additional information
Inclined tank for easier cleaning. Reinforcing cross members in the design. Reversible left/right for site adaptation.

Characteristics / technical specifications

• Product reference: 2497
• Usable capacity: 400 litres
• Length: 2300 mm
• Width: 550 mm
• Height: 579 mm
• Access: 220 x 43 cm (4 cows simultaneously; up to 8 if accessed both sides)
• Drain: Ø100 mm + overflow (2 holes Ø27 mm)
• Panel pass-through plug: Ø 1¼ (for linking)
• Water supply mode: Network (automatic switch from pre-cooler)
• Water connection: 3/4
• Material: Stainless steel
• EAN / Barcode: 3599150052894
• Shipping delay: J+5
