Digester tank ECOBAG®

for industrial effluentswaterslurry

Overview

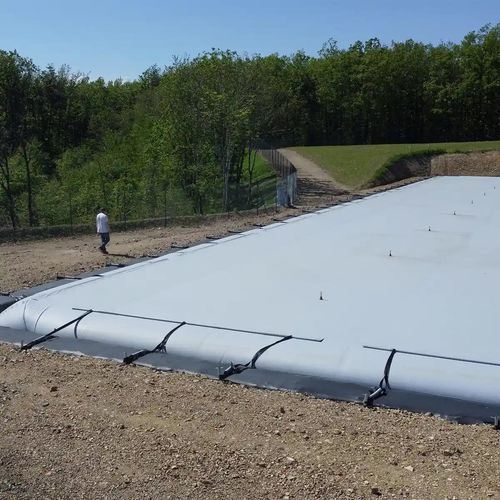

The semi-buried flexible tank ECOBAG® is a fixed flexible storage solution developed for industrial-scale volumes. Using the same manufacturing technology as self-supporting flexible tanks, it enables storage capacities of up to 10,000 m³. Diamond-point excavation increases usable height compared with conventional aboveground flexible tanks by distributing loads onto embankments.

Manufacturing and materials
The manufacturing process assembles panels of technical fabric by high-frequency welding. Fabrics consist of a polyester weave (structural reinforcement) coated with PVC or PU and treated with anti-UV protection on both faces. Fabrics are selected according to the technical characteristics of each liquid and certified to comply with applicable regulations to ensure long-term performance.

Applications

• Slurry storage
• Digestate storage
• Storage of effluents, water or fuels

Benefits

• Enables large-dimension storage and rapid installation
• In many cases no building permit is required (simple authorization may be sufficient depending on local regulations)
• Prevents dilution of effluents by rainwater
• Protects liquid from contamination, oxidation and evaporation

Basic guide and installation
Flexible reservoirs and self-raising basins are straightforward to install and do not require special maintenance. Labaronne-Citaf provides a dedicated installation and maintenance service (PIE) to support customers throughout the project, from installation to upkeep.

Technical characteristics / specifications

• Capacity: volumes up to 10,000 m³
• Design: semi-buried with diamond-point excavation to increase usable height
• Liquid compatibility: designed for liquids up to 12% dry matter (non-fibrous)
• Materials: technical fabric panels with polyester weave, PVC or PU coating, anti-UV treatment on both faces
• Assembly: high-frequency welding of panels
• Maintenance: simple installation and maintenance, no particular upkeep required
• Origin of the process: flexible storage developed and improved since 1957
