Germination chamber MPC

for plant growthseed storagewalk-in

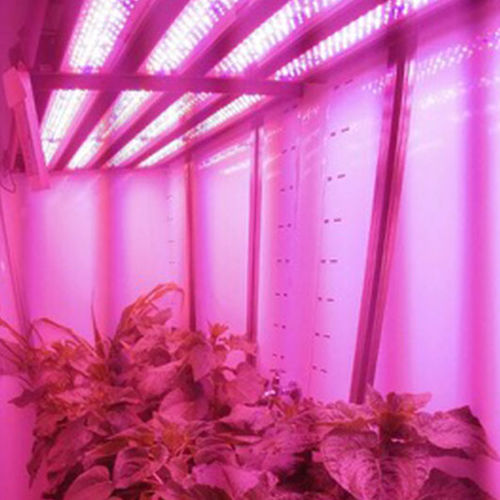

The Modular Plant Chamber is a portable stand-alone walk in facility for a wide range of research applications. Adjustable shelving allows for the growth of both tall and short plants. Tissue culture and incubation conditions are user defined and integrated in the pre-build design. Each Modular Plant Chamber is fitted with a sophisticated building management system to accommodate end user experiment settings over a wide environmental control range. Typical parameters and options: Lighting: Fixed wavelength tube lights Custom developed high PAR LED lights with adjustable wavelengths and colour. Configuration: Chambers: Single or multi chamber configuration, up to four chambers. Shelving: Adjustable, up to 66 m² total shelf surface. Services: • Irrigation, manual or programmable. • Electrical service outlets. • HMI display. • Remote monitoring and logging. • CO2 addition, programmable. Control: • Temperature: 18°C to 40°C • Relative Humidity: 30 % to 90% • Lights: on/off • Air quality: HEPA filtration with final efficiency of 99,97% Access control and safety systems: • Key lock with biometric access control and emergency escape override. • Fire alarm Detachable, lockable utilities chamber fitted with: • Water chiller cooling and heating system • Supply and return air, with filtration • Steam humidification system. • Supply water treatment system. • Main electrical control panel. • Programmable Logic circuit controller • CO2 cylinder housing
