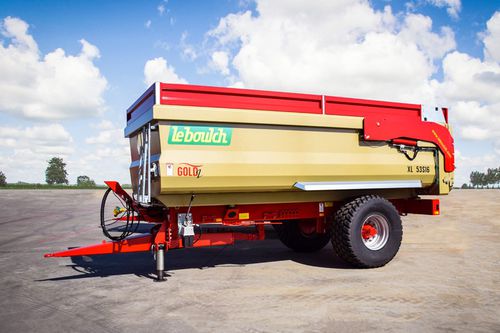

Dump trailer GOLD2 XL

tippingmounted2-axle

GOLD2 XL monocoque tipping trailers Monocoque tipping trailer made of ST420 high tensile steel with 40 km/h certification payload from 11 to 18 t (body of 1.20 m high) Standard equipment on Gold 2 XL tipping trailers • Tapered monocoque body (ST420 high tensile steel - 4 mm) • 1-part hydraulic door (with seal) • Multi-position central grain chute of 500 x 500 mm (width x height) • Sight window on body (with perspex and galvanized protective grating) • Galvanized access ladder • LED flash light (flashing beacon on lighting) • Hydraulic brakes • Wheels 400R22.5 (handling wheels) Specific equipment on 47S16 XL and 53S16 XL • Chassis made of 300 x 100 x 6 mm tubes • Rigid drawbar • Mechanical stand • Tipping system with direct connection on the tractor (flexible tipping) Specific equipment on 53D19 XL to 62D24 XL • Chassis made of 300 x 100 x 6 mm tubes (8 mm on D22 and D24) • Sprung drawbar • Hydraulic stand • Tipping system with direct connection on the tractor (flexible tipping) Specific equipment on high-tipping trailers 53D19 to 62D24 XL and 53D19 to 73D29 XXL (to replace the corresponding standard equipment) • 2 grain hatches (width: 500 mm) • 2 removable chutes • Tipping by compressor • Lifting through tractor hydraulics Running gear Parabolic and multi-leaf suspensionMechanical suspensions with spring leaves, multi-leaf or parabolic suspensions stand for easy use and operation. Bogies are recommended because of their high wheel clearance, while tandems and tridems are the best compromise for use on both road and fields.
