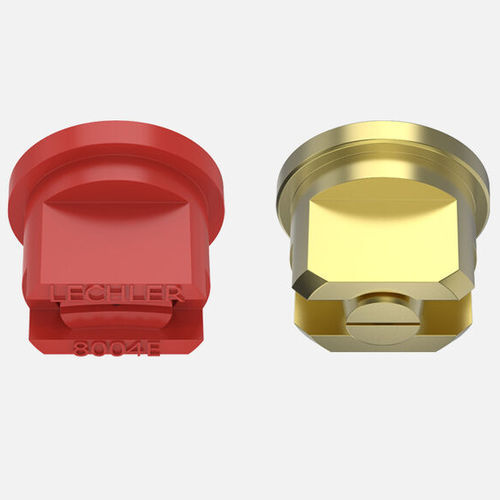

Brass nozzle E

flat spraylow-pressurefor row crops

Features - Even Flat spray nozzle - Nozzle sizes 01 to 08 - Pressure range 1.0 to 4.0 bar - Special-purpose nozzle for band and row spraying in combination with boom sprayers, seeders and hoeing implements - Uniform distribution of active ingredient across the entire range thanks to rectangular spray pattern - Fully developed spray angle from 1.0 bar on up - Minimal spray losses thanks to precise delimitation of the liquid jet - JKI approved (former BBA) (1.5 to 3.0 bar) - Included in the lists of »Drift and Loss reducing Techniques«, JKI (former BBA), ÖAIP, Hjälpreda and SPF Range of application - Application of plant protectants in banding/row spraying - Small implements, e.g. as individual nozzle for knap sack sprayers Nozzle alignment Lechler’s even flat spray nozzles E enable extremely short spray heights (H), thus extensively avoiding band drift. The width of the spray band (B) can be varied by altering the spray height (H) and/or rotating the spray axis to change the spray offset.
