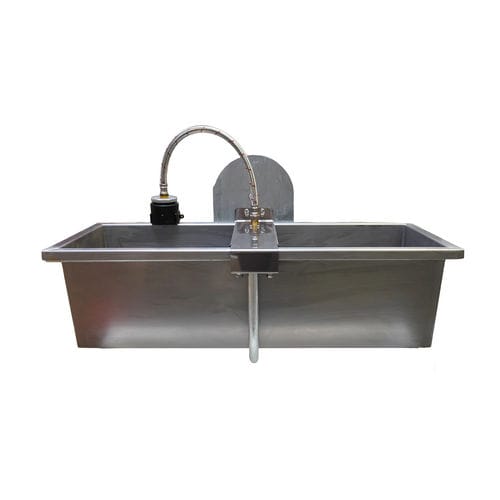

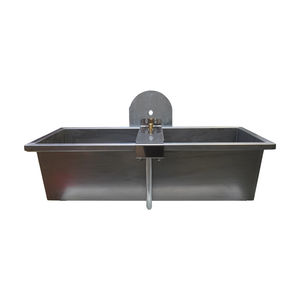

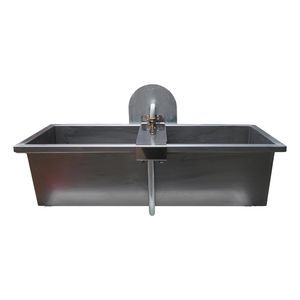

Cattle waterer TW 30 WN NIRO

troughautomaticgalvanized steel

Product description
The LISTER cattle water trough TW 30 WN NIRO is a mobile pasture trough designed for connection to IBC tanks. Bowl capacity approx. 32 L, automatic water regulation via float valve, galvanized steel frame, stainless steel cover and hose connection. Suitable for grazing cattle and outdoor areas without a fixed water supply.

Robust construction
The trough body is moulded from durable plastic and reinforced by a sturdy galvanized steel tube frame. A stainless steel cover protects the valve from mechanical impacts and increases service life.

Automatic water regulation
An integrated brass float valve provides constant water supply and maintains the water level automatically. The valve cover is stainless steel. The valve can be locked for transport to prevent leakage.

Connection / Installation
Optimised for IBC tanks with S60 internal thread (S60 connection). Supplied hose fitting and steel-braided hose enable simple and secure installation on IBC containers; suitable for mobile watering points.

Cleaning and handling
Two integrated drain outlets with screw caps allow complete emptying and simplify cleaning. Transport lock on the valve prevents accidental water loss.

Applications

• Pasture watering for cattle
• Mobile water supply with IBC tanks
• Outdoor and open-stall areas without fixed water lines

Characteristics / Technical specifications

• Model: TW 30 WN NIRO
• Bowl capacity: approx. 32 L
• Trough body: durable plastic
• Frame: galvanized steel tube
• Cover: stainless steel (valve protection)
• Float valve: brass (automatic water regulation)
• Connection: IBC tank S60 internal thread (S60 connection); with hose fitting and steel-braided hose
• Drain outlets: 2 with screw caps (for complete emptying)
• Transport lock: valve can be fixed to prevent water loss
• Technical data (from product text): Width: approx. 810 mm; Height: approx. 400 mm; Projection: approx. 365 mm; Adapter pitch: approx. 50 mm; Weight: approx. 11 kg
• Additional attributes (from specification table): Shipping weight: 14.2 kg; Width: 820 mm; Height: 235 mm; Projection: 330 mm; Weight: approx. 13.7 kg; Bowl capacity: approx. 32 L; Flange diameter: 190 mm; Connection: IBC Tank S60 x 6 IG 2" internal thread
