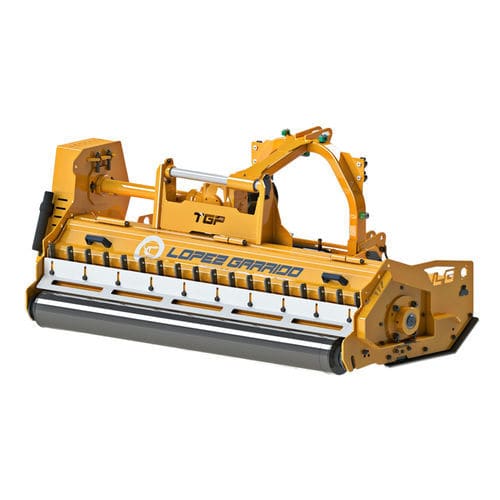

Mounted mulcher TGPhammervineyard18 hammers
Add to favorites
Compare this product
Characteristics
- Type
- mounted
- Technology
- hammer
- Applications
- vineyard
- Number of hammers
- 18 hammers, 16 hammers, 22 hammers, 28 hammers, 26 hammers, 12 hammers
- Other characteristic
- PTO-driven, hydraulic, for tractors
- Cutting width
Max.: 3,200 mm
(125.98 in)Min.: 1,600 mm
(62.99 in)- Rotational speed
540 rpm
(3,393 rad.min-1)- Tractor power
Max.: 140 ch
(140 hp)Min.: 70 ch
(70 hp)- Weight
Max.: 1,300 kg
(2,866.01 lb)Min.: 838 kg
(1,847.47 lb)
Description
hydraulic displacement
rear hatch
rear levelling roller
made from SWEDISH STEEL
Mulcher designed for medium power tractors. Special for work in grass, vineyards, green spaces and pruning remains, up to a diameter of 10 cm. Frame made of steel with a high elastic limit. • 450 mm diameter rotor. • Hydraulic displacement 450 mm. • Rear leveling roller. • Cat II hitch. • Tailgate. • Rear retention tines. • Forged and hardened hammers with 27 mm screw. • 2 lines of screwed counter blades. • Lateral transmission by 5 XPB belts. • Front protection. • Height adjustable skates. • Group with free wheel and input speed at 540 rpm. • Reinforced cardan transmission. • Protections according to regulations. • CE marking.
Catalogs
No catalogs are available for this product.
See all of Lopez Garrido‘s catalogsExhibitions
Meet this supplier at the following exhibition(s):
Sommet de l'élevage 2026
6-09 Oct 2026 Clermont-Ferrand (France) Hall EXTERIEUR - Stand E1-82
More information
