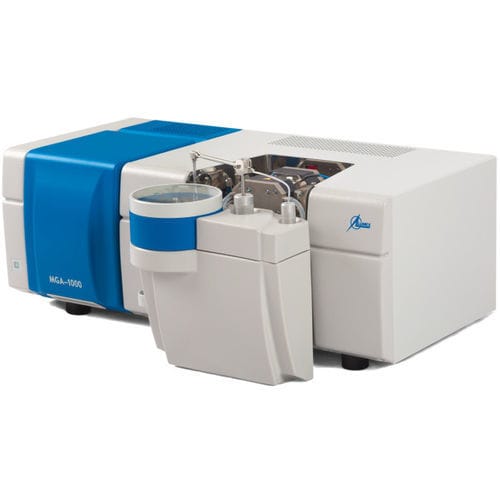

Animal feed analyzer MGA-1000

soilwatersalinity

Overview
MGA-1000 is a graphite furnace atomic absorption spectrometer based on the patented Zeeman High Frequency Polarization Modulation (ZHFPM) technique. MGA-1000 is intended for determination of a wide range of elements in various types of samples (water, soil, foodstuffs, fodders, pharmaceuticals, etc.). The instrument provides high selectivity and sensitivity of analysis.

Key technologies
Graphite Furnace Atomic Absorption Spectrometry (GFAAS) combined with the ZHFPM background correction technique enables effective compensation of intense and rapidly changing spectral interferences and routine analysis of complex matrices.

Features and advantages

• Simultaneous measurement of total and background absorptions
• Direct analysis of samples with high salinity and organic content: blood, body fluids, sea water, brines, food and soil digests
• 47-position autosampler compatible with centrifuge-type tubes
• Closed-loop water cooling for the atomizer
• Stabilized temperature platform furnace (STPF) implementation
• No flammable gases or air compressor required; high-purity argon only
• Standard 28 mm graphite tubes of Massman and L’vov types available with extended lifetime
• Quasi-double-beam optics reduce drift and allow operation without warm-up
• Low detection limits and direct determination of As, Se and other elements down to ~1 ppb without hydride generation or preconcentration
• Analysis of Na, K, Mg and Ca from sub-ppb to hundreds ppm
• 6-lamp turret supporting hollow cathode lamps and electrodeless discharge lamps (EDL)
• Compact dimensions and quiet operation for placement in standard laboratories
• Optional RGP-915 cold vapor / hydride generator for Hg and hydride analyses

Applications

• Environmental monitoring
• Water treatment
• Food and beverage analysis
• Agriculture and feed
• Pharmaceuticals and life sciences
• Medical and biochemical research
• Forensics and clinical research
• Petrochemical analysis and refineries
• Process control and material analysis
• Science and research

Software
User-friendly Eltherm software for instrument control, data processing and storage; compliant with 21 CFR Part 11 and providing automatic self-diagnostics and safety control.

Equipment and options

• Atomic Absorption Spectrometer MGA-1000
• 47-position autosampler
• Eltherm software package
• Spectral lamps (Hollow Cathode Lamps and Electrodeless Discharge Lamps)
• Graphite furnace tubes (Massman and L’vov types)
• RGP-915 hydride/cold vapor system (optional)
• Analysis kits (available on request)

Warranty
MGA-1000 spectrometer is covered by a full 1-year warranty.

Services
Installation and commissioning can be performed on site by the manufacturer's service engineers or certified distributor engineers.

Specifications (table)
Wavelength range: 185 – 900 nm
Maximal furnace temperature: 3000 °C
Furnace heating rate: up to 4500 K/sec
Background correction: Zeeman HF polarization modulation
Lamp turret: 6-lamp revolver turret
Spectral lamps: Hollow Cathode Lamps; Electrodeless Discharge Lamps
Argon flow rate (high-purity argon): < 2 l/min
Typical tube lifetime: Up to 800 analysis cycles
Autosampler capacity: 47 positions
Atomizer cooling: Closed-loop water cooling system
Power supply: Three-phase 220/380VAC, 50/60 Hz or 120/208VAC, 50/60 Hz
Power consumption: 0.1 kW standby; 6 kW atomization
Size (WxDxH): 800 × 475 × 310 mm
Weight: 50 kg

Detection limits (selected)
Ag (328.1 nm): absolute 0.2 pg; relative 0.005 µg/l
Al (309.3 nm): absolute 1.5 pg; relative 0.038 µg/l
As (194.0 nm): absolute 4 pg; relative 0.1 µg/l
Cd (228.8 nm): absolute 0.01 pg; relative 0.00025 µg/l
Cu (324.7 nm): absolute 1 pg; relative 0.025 µg/l
Fe (248.3 nm): absolute 2 pg; relative 0.05 µg/l
Hg (253.7 nm): absolute 10 pg; relative 0.25 µg/l (0.002 µg/l with RGP-915 accessory)
Zn (213.9 / 307.6 nm): absolute 0.01 pg / 50 pg; relative 0.00025 µg/l / 1.25 µg/l

Technical specifications

• Model: MGA-1000
• Technique: Graphite furnace AAS with Zeeman HF polarization modulation (ZHFPM)
• Wavelength range: 185–900 nm
• Furnace max temp: 3000 °C; heating rate up to 4500 K/sec
• Background correction: Zeeman HF polarization modulation
• Lamp turret capacity: 6 lamps (hollow cathode and EDL)
• Autosampler: 47-position (supports centrifuge-type tubes)
• Cooling: Closed-loop water cooling for atomizer
• Gas: High-purity argon required (< 2 l/min)
• Power supply options: Three-phase 220/380VAC or 120/208VAC, 50/60 Hz
• Power consumption: 0.1 kW standby; 6 kW atomization
• Dimensions (WxDxH): 800 × 475 × 310 mm
• Weight: 50 kg
• Software: Eltherm (21 CFR Part 11 compliant)
• Accessories: RGP-915 cold vapor/hydride generator; standard graphite tubes (Massman and L’vov)
