Irrigation water tunnel SB 04

Description

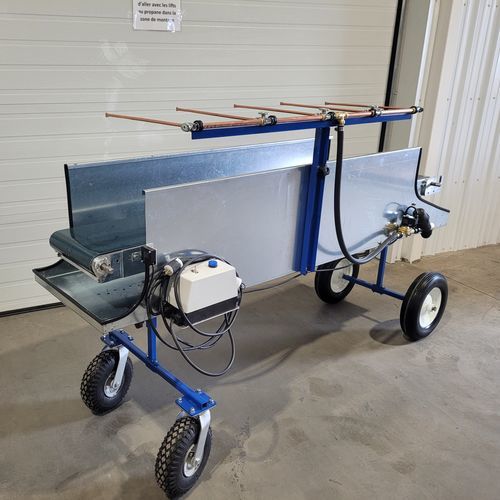

Constructed mainly in stainless steel, the SB 04 water tunnel provides controlled overhead irrigation for flats, trays, pots and hanging baskets. It features five watering bars, each with an independent valve, and is available with a variable-speed conveyor or without a motor to integrate as a conveyor section in existing lines. A photocell sensor and electric water valve stop irrigation when no containers are detected, and the unit can be linked to external control equipment for stop-and-go operation.

Applications

• Nurseries and greenhouse production lines
• Automated potting and finishing lines for ornamentals and vegetables
• Integration into container handling conveyors for inline irrigation

Specifications

• Length: 7 ft (2.1 m)
• Interior width: 19.5" (48 cm)
• Five watering bars with 12" (30 cm) spacing
• Watering bars adjustable from 9" to 20" (23 cm to 51 cm) above the conveyor
• Conveyor height adjustable from 26" to 36" (66 cm to 91 cm)
• Photocell sensor and electric water valve included
• Variable-speed conveyor or motorless option for inline integration
• Standard voltage: 120 V (other voltages available on request)
• Construction: mainly stainless steel
