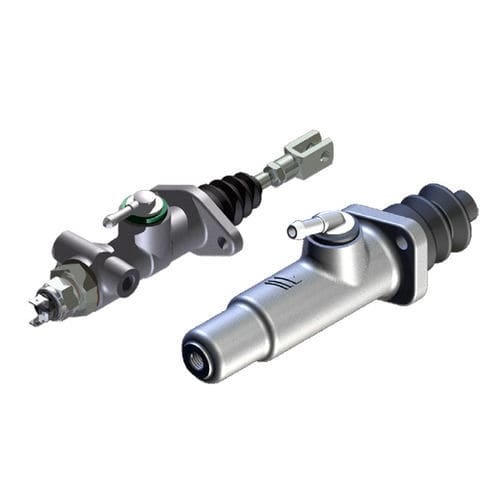

Cylinder MC25 series

In addition to standard products, Vimoter also designs master cylinders for specific use within oilimmersed systems. Vimoter has earned a reputation as a reliable supplier by respondingquickly to the needs of customers. Our manufacturing facilities use the latest computeraided machinery to ensure we provide our customers with a highly reliable product. The operation of these master cylinder is quite simple. The load of the pushrod is moved to the piston into the master cylinder that converts the load into hydraulic pressure.The outlet pressure is directly proportional to the load applied to the pushrod.The displacement is directly proportional to the piston stroke. Below is the layout of the hydraulic scheme and the typical functional characteristic. NOTE: For working pressure or piston strokes that are different from what is shown on te catalogue, please check it with R&D Department.
