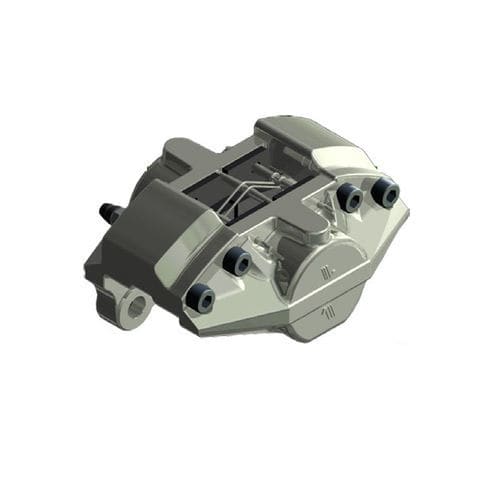

Hydraulic brake caliper 20.3195 series
disc

Hydraulic brake caliper - 20.3195 series - Madal Srl - disc
Hydraulic brake caliper - 20.3195 series - Madal Srl - disc
Add to favorites
Compare this product
Go to the Madal Srl website for more information

Characteristics

Operation
hydraulic
Other characteristics
disc

Description

Brake caliper with pistons anti retracting device (for vehicles with top speed lower than 30 km/h) cast iron Construction material 2x48 - mm - Pistons number an diameter 150 - bar - Max operating pressure 2x37 - cm2 - Pads number and surface 13-11 - mm - Disc thickness (max/min) 200 •=■ 400 - mm - Disc diameter (D) (D/2)-25 - mm - Effective rolling radius (Re) 3,3 - cm3 - Fluid displacement at 150 bar 2 - cm3 - Fluid displacement at 150 bar (A) ore 3 - 9 - - Mounting location 6,4 - Kg - Weight (with pads) brake fluid - Actuation fluid 20.3195.11/51 (A) hydraulic oil - Actuation fluid 20.3195.31/71 (A)
