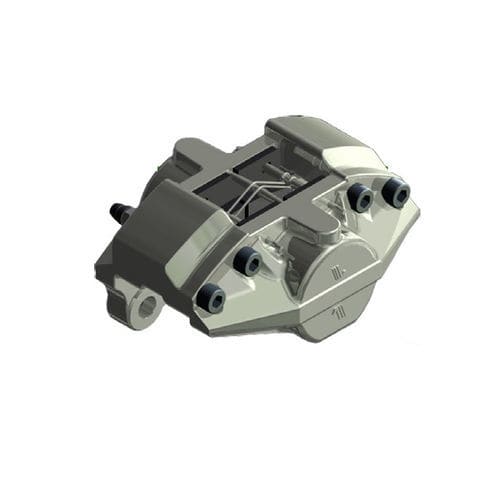

Hydraulic brake caliper 20.2802.9 seriesdisc
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Other characteristics
- disc
Description
cast iron Construction material
2 x 75 mm - Pistons - number - an - diameter
150 - bar - Max operating pressure
2 x 74,5 - cm2 - Pads number and surface
30-28 - mm - Disc thickness (max/min)
300 * 700 - mm - Disc diameter (D)
(D/2)-29 - mm - Effective rolling radius (Re)
9,2 - cm3 - Fluid displacement at 150 bar
ore 3 - 9 - - Mounting location
15,6 - Kg - Weight (with pads)
brake fluid - Actuation fluid 20.2802.96
hydraulic oil - Actuation fluid 20.2802.95
