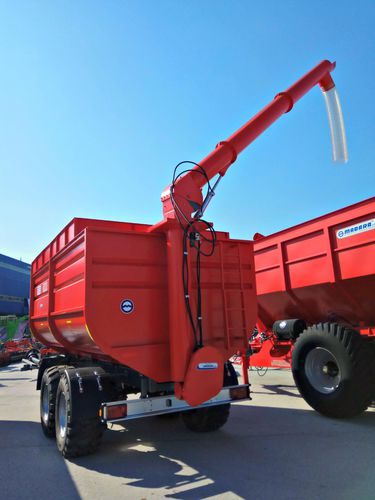

Dump trailer TRAKIAtandem axleagriculturalgrain
Add to favorites
Compare this product
Characteristics
- Construction
- dump
- Number of axles
- tandem axle
- Application
- agricultural, grain
- Brake system
- with pneumatic braking
- Other characteristic
- harvesting
- Empty weight
4,500 kg
(9,920.8 lb)- Recommended power
120 ch
(120 hp)- Load volume
20.5 m³
(723.951 ft³)- Loading case lenght
5,000 mm
(196.9 in)- Loading case width
2,600 mm
(102.4 in)- Loading case hight
3,342 mm
(131.6 in)
Description
Trailer for grain collecting and distribution.
Collecting and distributing grain during harvesting and sewing, reloading it from combines to transport vehicles and seeders.
EQUIPMENT
- built- in spiral conveyerconsisted of 2 parts with turning rate 540 rpm;
- 360 degree rotating auger around vertical axis.
Securing: Drive shaft protective clutch. Brake system actuates automatically, in case of trailer emergency disconnect from the tractor.
TECHNICAL DATA
Transshipment output - m3/min:2,1
Unloading height - mm:6 500
Turning auger speed, rpm - rpm:540
Diameter of the auger - mm:273
Tire size:500/60-22,5''
Macihne total weight - kg:22 500
