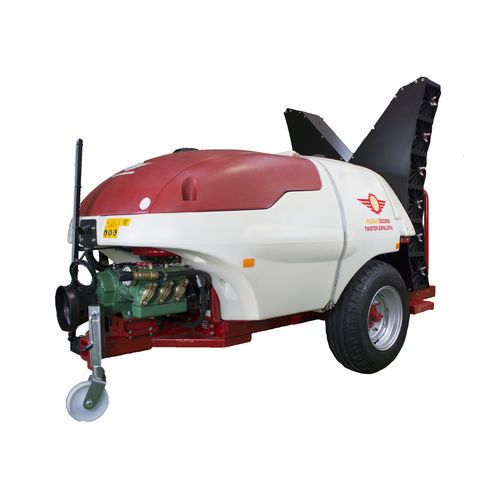

Towed agricultural atomizer Twister FR Espaldera

vineyardhydrauliccentrifugal

trailed sprayer especially designed for the vines in spalier, taking into account all the particularities of this crop, and applying TWISTER technology. It allows the treatment in 4 ½ faces of the vineyard in each pass. It is possible to attach upper nozzles for trees and lower, anti-botrytis for vineyard in glass. GENERAL FEATURES -Double structural tube frame -Telescopic drawbar -Side step for reaching tank filler lid -Jockey wheel for parking sprayer -High quality polyethylene main tank with uniform thickness and front and side level indicator -Hand wash and sistem rinse tank -Multiple filtering system -Product mixer -Cleaning robot inside the main tank -Hydraulic stirrer -Mañez Lozano high pressure piston pump with reducer shaft -Electric ON/OFF control command -Through tank PTO class 4 SAE G7 -Tractor PTO class 4 SAE G7 TWISTER AIR SYSTEM -Stainless steel pipes -Steel propeller with 18 blades to ensure homogeneous air distribution of air volume on both sides -Triple air ducting system, which prevents the collision between fastest air produced in the upper part of propeller and slower generated in central part. This system increases the efficiency -Mañez Lozano gearbox with two speeds and a neutral, able to transmit strong power -Alluminium iron centrifugal clutch that allows a soft and progressive start and stop. -Propeller with duraluminium hub with steel sleeve to prevent wear due to friction with the clutch. -8 adjustable helical pitch blades that regulate energy/power absorption, reducing noise level and fuel consumption.
