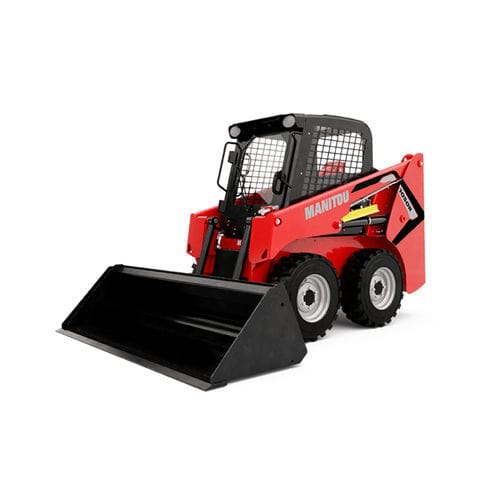

Rubber-tired loader 1050 R

compactminiwith cab

Carry out your leveling, loading and grading tasks with ultra-compact 1050 R skid loader. The compactness of this Manitou loader and the ergonomic driving position allows you to operate easily, even in the most confined, difficult to access spaces. Enjoy the versatility of the ultra-compact 1050 R skid loader to perform your various operations in - transporting, loading, unloading, height positioning and change out attachments within minutes to complete multple projects at a time. Capacities - - - - Metric Rated Operating Capacity - - - - 476 kg Rated Operating Capacity with Optional Counterweight - - - - 533 kg Unladen weight - - - - 1905 kg Weight and dimensions - - - - Overall Operating Height - Fully Raised - - h27 - - 3546 mm Height to Hinge Pin – Fully Raised - - h28 - - 2746 mm Overall Height to Top of Rops - - h17 - - 1786 mm Dump angle at full height - - a5 - - 42 ° Dump height - - h29 - - 2146 mm Overall length with bucket - - l16 - - 2896 mm Dump reach at full height - - - - 579 mm Rollback at ground - - - - 29 ° Seat to ground height - - h30 - - 828 mm Wheelbase - - y - - 876 mm Overall width less bucket - - b1 - - 1229 mm Bucket Width - - e1 - - 1404 mm Ground clearance - - m4 - - 152 mm
