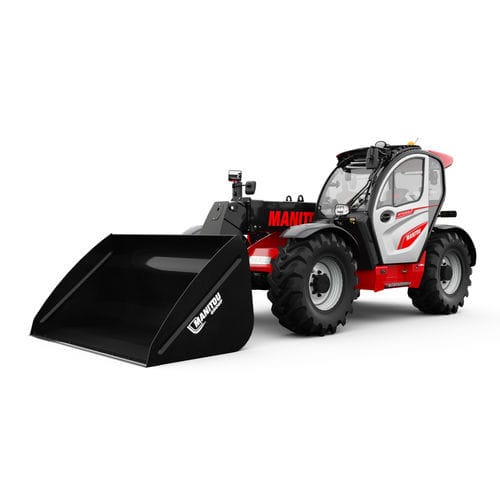

Agricultural telehandler MLT 742-130 PS+ (S1)

Overview
Dedicated to the agricultural market, the MLT 742-130 PS+ (S1) telescopic handler offers a maximum lift height of 6.91 m and a maximum capacity of 4,200 kg. Versatile for multiple farm tasks including pallets, bales, grain and forage handling.

Comfort first and foremost

• High-visibility grille
• Easy access to the driver’s cab
• Standard equipment: automatic parking brake, large display, JSM joystick

Performance first

• 129 hp engine (95 kW)
• Powershift Plus transmission
• 150 l/min hydraulic flow
• All-terrain capabilities
• Radiator cleaning system and air pre-filter

Profitability first and foremost

• Easy access to main service points
• Connected machine capability
• Optimized fuel consumption with Stop & Start function

Capacities

• Max. capacity: 4200 kg
• Max. lifting height: 6.91 m
• Maximum outreach: 3.96 m
• Reach at max. height: 1 m
• Breakout force with bucket: 5748 daN

Weight and dimensions

• Unladen weight (with forks): 8120 kg
• Ground clearance: 0.41 m
• Wheelbase: 2.81 m
• Overall length to carriage (with hitch): 5.02 m
• Front overhang: 1.26 m
• Overall width: 2.39 m
• Overall cab width: 0.95 m
• Overall height: 2.38 m
• Tilt-down angle: 133°
• Tilt-up angle: 14°
• External turning radius (over tyres): 3.93 m
• Standard tires: Alliance - A580 - 460/70 R24 159A8
• Drive wheels (front / rear): 2 / 2
• Steering modes: Manicrab, 2-wheel steer, 4-wheel steer, Crab mode

Performances

• Lifting: 8.70 s
• Lowering: 8.60 s
• Extension: 6.90 s
• Retraction: 6.10 s
• Crowd: 3.60 s
• Dump: 3.10 s

Engine

• Engine brand: Deutz
• Engine norm: Stage V
• Engine model: TCD 3.6 L4
• Number of cylinders - Capacity: 4 - 3621 cm³
• Engine power: 129 Hp / 95 kW
• Max. torque / Engine rotation: 500 Nm @1600 rpm
• Drawbar pull (Laden): 8000 daN
• Reversible fan: Standard
• Engine cooling system: 4 radiators (water + intercooler + hydraulic oil + transmission oil)
• HVO validated (according to EN 15940 standard): Yes

Transmission

• Transmission type: Torque converter
• Gearbox: Powershift
• Number of gears (forward / reverse): 6 / 3
• Max. travel speed (may vary according to applicable regulations): 40 km/h
• Differential lock: Limited slip differential on front axle
• Parking brake: Automatic negative parking brake
• Service brake: Oil-immersed multi-disc brakes on front & rear axles

Hydraulics

• Hydraulic pump type: Variable displacement pump
• Hydraulic flow - Pressure: 150 l/min - 270 bar
• Flow sharing distributor: Standard

Tank capacities

• Hydraulic tank capacity: 135 l
• Fuel: 120 l
• Diesel Exhaust Fluid (AdBlue® type): 10 l

Noise and vibration

• Noise at driving position (LpA) tested following NF EN 12053 norm: 72 dB
• Vibration on hands/arms: < 2.50 m/s²

Miscellaneous

• Tractor homologation: Tractor homologation
• Cab certification: Cabin ROPS - FOPS level 2
• Controls: JSM

Compatible attachments (selection)

• Forks & Grabs: Square Bale Forks (capacity 1700 kg; width 1878 mm; overall weight 215 kg)
• Forks & Carriages: Tilting Forks Carriage (capacity 4500 kg; width from 1286 mm to 2026 mm)
• Buckets: Environment Grab Bucket (heaped capacity 1568 l; width 2450 mm)
• Buckets: Sugar Beet Bucket (heaped capacity 2500 l; width 2450 mm)
• Clamps: Bale Clamp Super Compact (capacity 800 kg; width 1090 mm; overall weight 156 kg)

Technical specifications

• Model: MLT 742-130 PS+ (S1)
• Max. capacity: 4200 kg
• Max. lifting height: 6.91 m
• Engine: Deutz TCD 3.6 L4 — 129 Hp / 95 kW — 4 cylinders — 3621 cm³
• Torque: 500 Nm @1600 rpm
• Transmission: Torque converter / Powershift — 6 forward / 3 reverse
• Hydraulics: 150 l/min — 270 bar — variable displacement pump
• Fuel tank: 120 l; AdBlue: 10 l; Hydraulic oil tank: 135 l
• Unladen weight (with forks): 8120 kg
• Standard tires: Alliance - A580 - 460/70 R24 159A8
• Max. travel speed: 40 km/h
• Cab: ROPS - FOPS level 2; Controls: JSM
