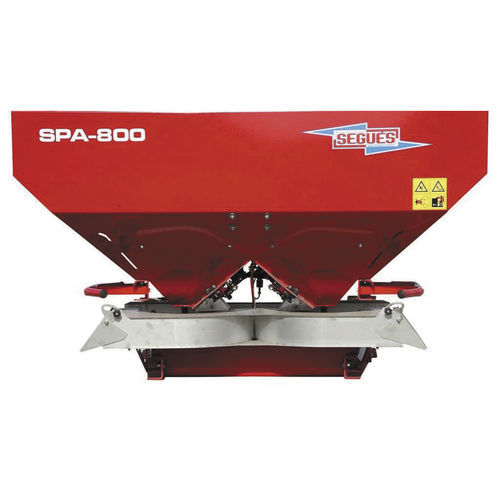

Mounted fertilizer applicator SPA series

soliddouble-discfor vineyards

The SEGUES SPA are mounted, twin disc and mechanically driven fertilizer distributors, with special measures for vineyards and fruit orchards and driven by the tractor’s PTO. The SPA offer a careful and exact fertilizer distribution up to 18 meters and offer hoppers to carry 500 & 750 l, with a stainless steel hopper as optional for a still longer life. STANDARD EQUIPMENT • Double stainless steel spinner • Whole distribution system rust proof • Exact and hand dose adjustment • Driven by a transmission included as standard • Adjustment tables for the most common fertilizers • Mesh to avoid blockages • Twin agitator, one in each outlet • High performance prime and coating OPTIONAL EXTRAS • Cover tarpaulin • Road security kit • Rear lights kit • bilateral conveyor made of stainless steel and adjustable • Round section outlet for conveyor • Hydraulic open-close controls • Hopper wall divider • Single hydraulic connection • Power:50 to 80 cv • Working width:0-18 m • Transport width:1.430 mm • Upload:600 kg • Length:1.110 mm • Width:1.430 mm • Height:98 – 120 mm • Weight:160 – 175 kg
