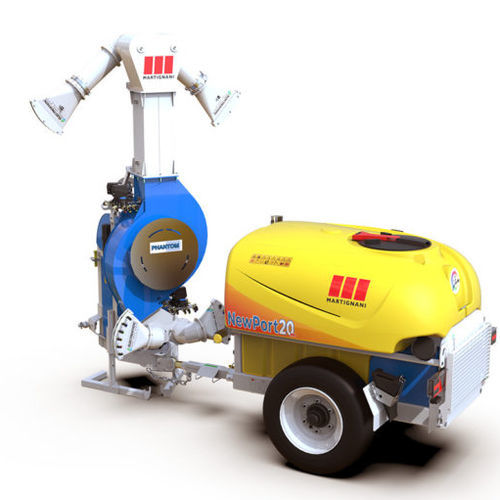

Trailed sprayer NewPort20
for viticulturecannonhydraulic

trailed sprayer
trailed sprayer
trailed sprayer
trailed sprayer
trailed sprayer
trailed sprayer
trailed sprayer
Add to favorites
Compare this product


Characteristics

Mobility
trailed
Application
for viticulture
Type
cannon
Technology
hydraulic
Other characteristics
cannon, electrostatic
Capacity

1,000 l, 1,500 l
(264.2 gal, 396.3 gal)

Rinse tank capacity

100 l
(26.4 gal)

Pump capacity

170 l/min
(44.9 us gal/min)

Pump pressure

1.5 bar
(21.8 psi)

Air flow

6,550 m³/h, 10,500 m³/h
(231,311.1 ft³/h, 370,804 ft³/h)

Description

Martignani presents the new Phantom "NewPort20" trailed sprayer, the evolution of the first ever version of an Articulated sprayer “Port20” designed by the company in the 1960s. SUITABLE LANDS FOR TRAILED SPRAYER (DRIVE 6/90) The NewPort20 is particularly suitable for the treatment of alternate rows of hilly vineyards with narrow passages because, thanks to the separate tank connected via a joint system, it allows great ease of maneuver without the use of homokinetic cardan shafts and / or hydraulic articulated drawbars. Two significant features of the new NewPort20, and to be emphasized, are its steering radio of less than 6 meters, and the possibility of this sprayer to articulate up to 90 ° (drive 6/90). The sprayer treats 4 vineyards walls simultaneously as the two lower diffusers treat the row in which the tractor passes, while the upper ones treat the rows alongside. This means a considerable time saving for producers because the steps in the vineyard are reduced exactly in half. ADVANTAGES OF THE PHANTOM NEWPORT20 TRAILED SPRAYER • Martignani Low Volume: water savings up to 90% • Sustainable use of agro-chemicals: product savings up to 40% • Electrostatic charge: reduction in drift losses + ZERO residues on fruit and wine • Faster working speed: 50% time saving • Reduced power consumption thanks to the exclusive design of the New M series fans (tractors required starting from only 40 HP in plain): fuel savings of an extra 20% • Integrated pump-fan system
