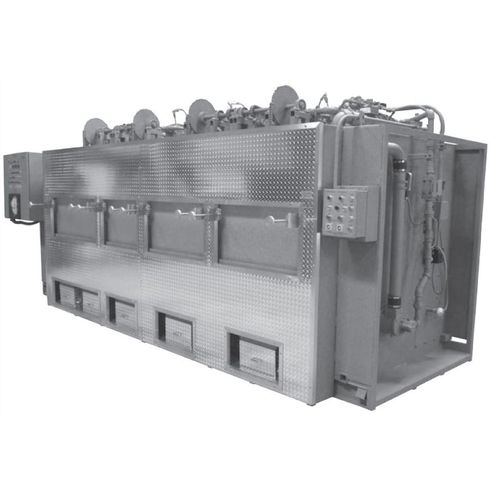

The IEB-32 5S is a high-production system that is well suited for volumes (3,500-5,500 pets per year) of segregated and communal cremations.
.Operating Controls – Our Touch-Screen Panel, PLC based controls simplify and completely automates the operation of the cremator for your equipment operator.
.Operator Safety - Underwriter's Laboratories (UL) Listed represents the most widely recognized measure of safety and compliance, ensuring the safety of personnel and facilities.
.SMOKE-BUSTER™ 85 - This feature effectively consumes and destroys smoke and odor from the cremation process.
.Quiet Operation - Exclusive "Whisper Shield" allows operation without disturbing other services.
.Retrieval System - Retrieval of cremated remains is safe and quick with the convenient external collection hopper.
.Cremation Chamber Floor - Unique "Hot Hearth" design eliminates fluid runoff and minimizes fuel consumption.
.Stainless Steel Stack - Non-Corrosive, with 3” refractory lining for strength, durability and safety.
.Insulating Thickness - 12" of multi-component materials for longest lasting refractory and highest thermal efficiency.
.Loading Door - Self-locking, self-sealing door opens and closes at the push of a button.
Speed: 250lbs/113kg per hour
Safe load: 1000lbs/453kg
Fuel type: Natural or LP Gas
Electrical: 230 volts, 1-Phase or 3-Phase
Length: 20' 8" (6.3m)
Width: 6' 8" (2.03m)
Height: 8' 1" (2.46m)
Weight: 41,500 lbs/18,824 kg
