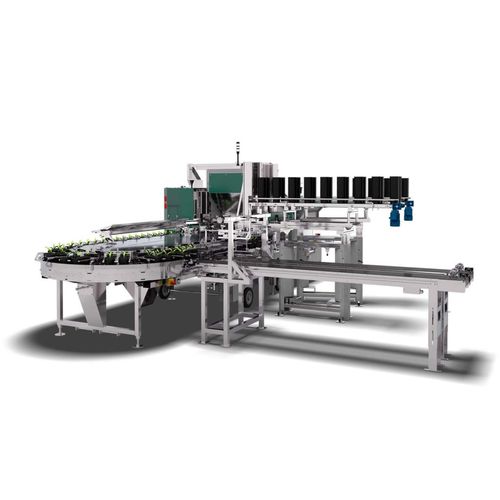

Automatic potting machine TM 2700XL

automatic potting machine
automatic potting machine
automatic potting machine
Add to favorites
Compare this product


Characteristics

Type
automatic
Capacity (pots/hour)

Min.: 0 p/h

Max.: 10,000 p/h

Description

The Mayer TM 2700 is designed as a robust high-performance potting machine with a production capacity of up to 10,000 pots per hour. The pot console offers enough space for potting for up to 5 persons or for a planting robot. It contains 26 (Version XL) “VarioFix” pot holders, which are quickly and easily adjustable in height and diameter. The hereby achieved stability of the pots allows continuous workflow. A constant pot support level eliminates the need for constant readjustment of the discharge conveyor during the changeover. The adjustability of the individual potholders makes their replacement per pot size unnecessary and thus saves their costly purchase and space-consuming storage. The exact guidance of the raceway is done by precise wear and a maintenance-free special belt. The potholders, which are non-positively attached to this belt, are additionally supported on the outer track, which prevents them from tilting. As with the chain elevator, the speed can be adjusted continuously by a potentiometer. The ingenious curve milling of the shift drum guarantees a smooth operation. The desired drilling pattern is thus maintained, an important prerequisite for smooth working with planting robots even with large plant balls. The unique 2-step soil return system protects the substrate structure and at the same time protects the machine from wear. The excess substrate is fed back into the soil bunker directly after the drilling process and is therefore not carried along the entire pot path. Thanks to an extensive range of accessories, we are also able to offer you individual solutions for special applications.

VIDEO
