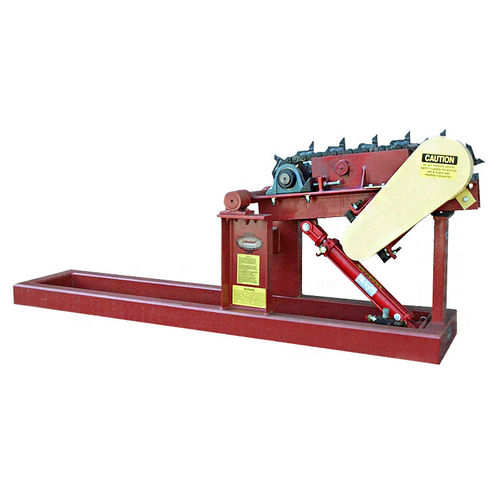

Horizontal log turner 100H

Meadows Log Turners are available in two sizes. The 100H listed is designed for use with the Meadows Model #1 Sawmill. Specifications •Hydraulic Cylinders: One 2" x 12" with 1 1/2" rod •Turning Chain: #100 chain with 3/4" dog width with 13 bits •Drive: H60TB13 sprocket with bushing, H60SDS25 sprocket with bushing, #60 drive chain, and chain guard •Drive Shaft: 1 11/16" diameter 1018 cold roll •Idler Shaft: 1 11/16" diameter 1018 cold roll •Frame: Base constructed from 3" x 4" tubing, uprights constructed from 8" channel and 4" channel •Head Frame: Constructed from 3" x 4" x 3/8" angle and various flat bar •Drive Motor: Charlyn 103-1032 hydraulic motor •Controls: 2-spool directional valve with single control stick •Hydraulic Requirements: 10 gpm & 950 psi
