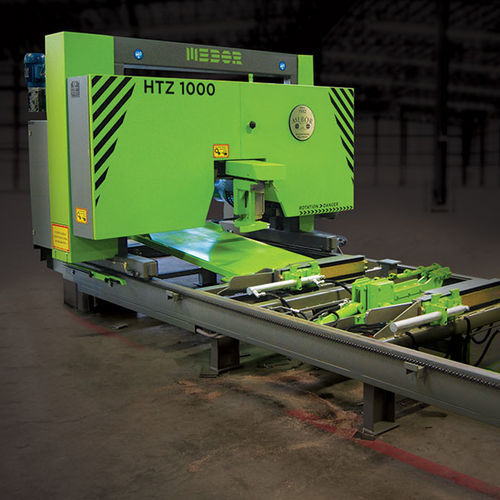

Band sawmill HTZ 1000

horizontalstationarywith belt conveyor

Mebor’s affordable HTZ 1000 makes it possible for small sawmills to cut with professional precision and speed. The machine includes heavy cast steel wheels with wide blades, full hydraulics for log manoeuvring and Mebor System® automatic control. Key features: •strong and durable, low maintenance costs, •heavy duty log turners, •simple and automated, one man operation, •available in a fully hydraulic or simple mechanical version. TECHNICAL DATA Productivity:up to 27 m3/8h* Max. log diameter:900 mm Max. cutting width:850 mm Max. log length: - custom made Diameter of flywheels:1020 mm Width of flywheels:105 mm Blade length:6200 mm Blade width:120** mm Blade thickness:1,1 mm Approximate weight:3800 - 5000 kg*** Width:2600 mm Total height (blade in highest position):2600 mm Total length:log length + 3,5m Main motor power:11/15/18,5/22/30 kW
