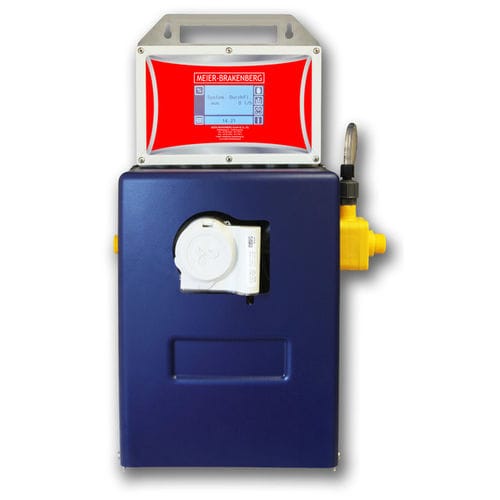

Drug dosage pump MBDos series
dosingelectric

drug dosage pump
drug dosage pump
drug dosage pump
drug dosage pump
drug dosage pump
drug dosage pump
Add to favorites
Compare this product


Characteristics

Application
drug dosage
Other characteristics
dosing, electric
Flow

Min.: 10 l/h
(2.64172 us gal/h)

Max.: 2,500 l/h
(660.43013 us gal/h)

Pressure

Min.: 0.3 bar
(4.35 psi)

Max.: 3 bar
(43.51 psi)

Description

Comfortable dosing of medication into drinking water. Our electrical dosing systems for medication can be easily integrated into already existing water lines. The dosing system meters the water throughput and an electric pump doses the required medium. Measuring is very accurate, even with low water throughputs. That ensures accurate dosages. Dosing systems are also suitable for dosing feed acids such as formic acid, propionic acid or chlorine dioxide for disinfection of lines. Our membrane pumps feature durability and long service life because the dosed medium does not get in touch with the pistons. Also the flow sensor is protected against the dosed media by a separate non-return valve. MB Dos Touch for precise dosing of medication - Permanently installed electrical dosing systems - Easy integration into drinking water supply line - Direct dosing in connection with mixing tanks MB Mix 60 and MB Mix 180 - Adjustable dosing ratio form 0.01 to 15 % - Continuous control of all preset parameters - Resistant to formic acid - Useful extra information as water consumption and day counter are stored on an SD card, digital flow display of the current water consumption - Robust membrane keyboard with digital display - Tested in accordance with DIN 10529-2: "Oral use of veterinary medicinal products in livestock via feed or water", DIN 10529-2: 2012-10 (MBDos20 only)
