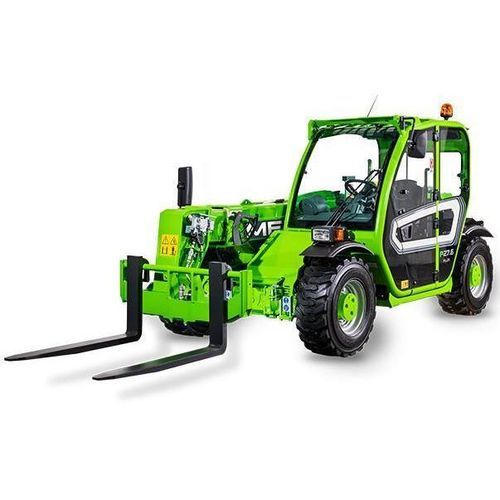

Construction telehandler P27.6PLUS

Overview
The Merlo P27.6 is a compact telehandler engineered to deliver lifting performance in confined work areas. It combines manoeuvrability and lifting capability while integrating Merlo panoramic telehandler technologies such as the Tac-Lock automatic hitch/unhitch system and a cab arranged for ergonomic control layout and operator comfort.

Key performance indicators

• Rated lift capacity: 2,700 kg
• Lifting height: approx. 6.0 m (table: 5.9 m)
• Maximum reach: 3.3 m
• Maximum power: 75 kW
• Unladen weight: 4,850 kg

Available variants

• P27.6EE4TOP
• P27.6EE4PLUS

Main features

• Tac-Lock functionality for automatic hitching and unhitching of attachments
• Panoramic visibility with a 360° visibility focus
• Compact footprint for operation in confined areas
• Operator-oriented cab layout with grouped controls; reverse shuttle on steering wheel and on the joystick
• Optional boom suspension
• 180° door opening for improved access (as shown in product visuals)

Notes
Designed to prioritise operator comfort, visibility and compactness while providing telehandler performance in a reduced-size machine.

Technical specifications

• Model name: P27.6
• Brand: Merlo
• Rated load capacity: 2,700 kg
• Unladen (curb) weight: 4,850 kg
• Lifting height: 5.9 m (listed in variant table) — hero display 6.0 m
• Maximum reach: 3.3 m
• Boom sections: 2
• Boom side-shift: not specified
• Frame levelling: not specified
• Maximum power: 75 kW
• Available variants: P27.6EE4TOP, P27.6EE4PLUS
• Key optional equipment: Tac-Lock, boom suspension, 360° visibility features
