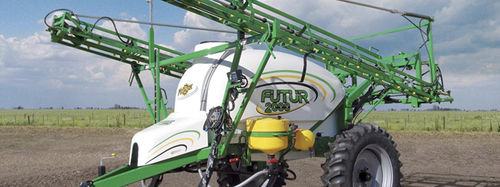

Pull-type sprayer FUTUR 2000

hydraulicfolding arms

The FUTUR 2000, a pull-type sprayer from METALFOR, is a machine equipped with modern elements and advanced technology, allowing you to perform all the functions it has been designed for, quickly and easily. WHEEL TREAD SPACING Adjustable tread width from 1.40 to 2.10 m or from 2.10 to 2.80 m in machine with rocker arm. CHASSIS Seamless tubes 6 mm thick, with a 100 x 100 x 6 mm tubular axle. Anti-corrosion treatment with Epoxy coating. TANK 2,000 L oval-shaped tank. Made of fiberglass. Clean-water rinse tank for personal hygiene. BOOM AND FRAME Boom with automatic leveling adjustment and central suspension using a nitrogen lung, with protective skids and quick return system, 18 m working width, height regulation from 0.40 to 1.80 m and folding at 45º electro-hydraulically operated. SPRAYING CIRCUIT UDOR RO 106 membrane pump, with a capacity of 106 L / min and a maximum pressure of 20 bar. 3-section manual Arag command with pressure control and power switch. Constant spray pressure for mixing, product loading and load ejecting system, Arag hydraulic mixer using Venturi system, 20-liter Arag product loader system with rinsing and bucket cleaning, and TEEJET nozzle holders spaced by 0.35 cm. TIRES 12.4 x 28 m OPTIONS Flow-regulating computer, satellite navigator, loading motor pump, fivefold nozzle system with 3 sets of discs spaced by 0.35 cm.
