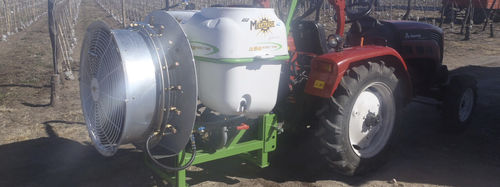

Mounted agricultural atomizer ASG Series
for orchards

mounted agricultural atomizer
mounted agricultural atomizer
mounted agricultural atomizer
mounted agricultural atomizer
mounted agricultural atomizer
Add to favorites
Compare this product


Characteristics

Mobility
mounted
Application
for orchards
Capacity

400 l, 600 l
(105.7 gal, 158.5 gal)

Description

Every METALFOR machine provides security, comfort and versatility for overall efficiency. This machine is equipped with modern elements and advanced technology, allowing you to perform all the functions it has been designed for, quickly and easily. CHASSIS Robust and oversized, mild steel tubular structure with polyurethane paint coating, suitable for the application of corrosive chemicals and liquid fertilizers. ASG 600/765VL – Width of 1,325 mm – Height of 1,552 mm – Length of 1,434 mm ASG 400/765 VL – Width of 1,325 mm – Height of 1,280 mm – Length of 1,434 mm PUMP UDOR KAPPA 75, 75 L/min 40 bar 3 rubber diaphragm pump, suitable for the application of liquid fertilizers. AIR KIT VL-765 air kit, METALFOR S.A. technology, 3-channel SPA pulley transmission system with R 1:4,2 circuit breaker. Fan blades of Ø 765, 8 adjustable inlet vanes of injected polyamide. Aerodynamic nozzle with adjustable radius, 75 % movable on guides. Nozzle regulator device. Air pre-distributor. Stainless steel tubes with adjustable porta-jets. 14 adjustable jets with individual locking, with ceramic discs and cone regulation. Turbine switch with remote command. Two outlets for tow bars. Protective fences for air intake and outlet, regulated according to working standards. Lower adjustable deflector to guide low air charges. Wind power adjustment: Inlet vanes at 30º – 540 rpm – outlet channel of 130 mm – air flow of 25,500 m/sec – consumption 16 hp Inlet vanes at 35º – 540 rpm – outlet channel of 140 mm – air flow of 37,500 m/sec – consumption 23 hp Inlet vanes at 40º – 540 rpm – outlet channel of 160 mm – air flow of 42,000 m/sec – consumption 32 hp
