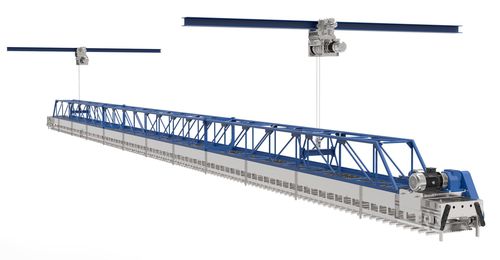

Levelling conveyor RO series

for grainchainrobotic

The levelling robot is one of the most technological systems for handling cereals, oilseeds and legumes in flat-bottom storages, allowing for their maximum filling (the entire geometric volume), as well as total and automatic emptying at very high flow rates. The Metalmont RO series levelling robots are designed and built to ensure the best performance even in the most difficult working conditions, minimise maintenance costs and total operating costs. RANGE from 60 to 200 t/h – higher flow rates available on request DRIVING ELEMENT (HEAD) •Two toothed driving wheels •High resistance steel driving shaft •Supports with self-aligning ball bearings shielded and lubricated with high-performing grease •Hollow shaft helical bevel gearmotor with chain transmission •Anti-clogging sensor •High density polyethylene chain sliding block INTERMEDIATE ELEMENTS •Case formed by bolted elements, carefully designed for quick and easy assembly •UHMW polyethylene chain sliding block (lower and upper) DRAG CHAIN •Drag chain with steel elements •Steel drag blades HOISTS •2 motorised hoists mounted on carriages movable horizontally on the runways fixed to the ceiling •Chain or rope hoist
