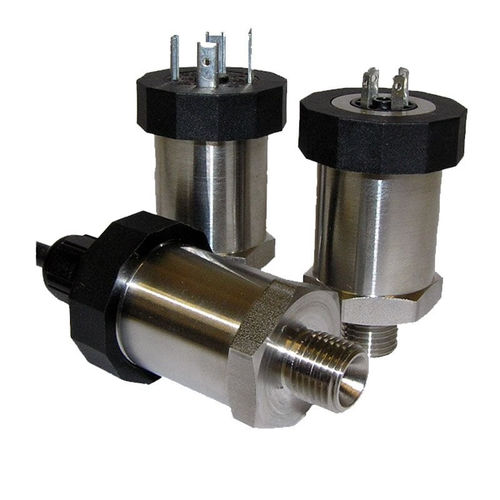

The IC-IMP-LR low range level / pressure transmitter has a piezo-resisitive silicon pressure sensor which is an oil filled isolated diaphragm. The sensor and housing are made from stainless steel with a choice of internal O ring seals to ensure the product is suitable for a wide range of applications. Every device is temperature compensated and calibrated and supplied with a traceable serial number and calibration certificate. The electronics incorporates a microprocessor based amplifier, this means there are no adjusting pots and therefore the electronics are very stable, especially in high vibration / shock applications.
Features of the IMP-LR include:
-Compact and rugged construction
-Stable, repeatable and reliable output
-Compensated ceramic technology
-Level ranges from 0.25 to 10 mWG
-Gauge reference
-Accuracy: <±0.25% FS BFSL (0.1% optional)
-Variety of outputs including mV, Volts and mA
-Cost effective for OEMs and end users
-High shock & vibration resistance
-Specials available on request
General Applications:
-Laboratory / calibration references
-Environmental engineering
-Tank level measurement
-Storage tank monitoring
-Heating and ventilation
