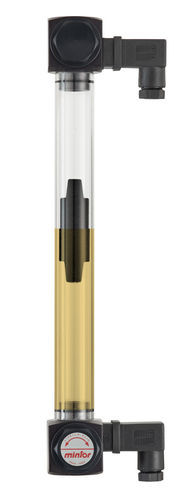

Tank float GLVE

cylindrical

Product overview
Vertical level indicator with double electrical contact for monitoring tank fluids. Supplied with polycarbonate tube. Recommended working temperature: 0°C – +80°C. The electrical sensor signals attainment of the MIN and MAX fluid levels. Contacts are normally open and close when MIN or MAX level is reached. Available in variable lengths on customer request from 200 mm to 2,000 mm. Supplied complete with connectors.

Electrical characteristics

• Maximum load on electrical contacts (AC): up to 140 V – 0.5 A – 10 W
• Maximum load on electrical contacts (DC): up to 200 V – 0.5 A – 10 W

Handling and options

• Avoid contact with alcohol, trichloroethylene, solvents, petrol, glycol and petroleum.
• Option: nickel-plated brass screws available for special applications (e.g., water).

Technical Info - GAS ISO 228 (table)
TYPE | CODE | a | L | e | q | d | c | f | s | l | WEIGHT (g)
GLVE1G | 1GLVE10A | 3/8" | 500 | 22 | 30 | 22 | 43 | 10 | 65 | 530 | 276
GLVE2G | 1GLVE20A | 3/8" | 1000 | 22 | 30 | 22 | 43 | 10 | 65 | 1030 | 320
GLVE3G | 1GLVE30A | 3/8" | 1500 | 22 | 30 | 22 | 43 | 10 | 65 | 1530 |
GLVE4G | 1GLVE40A | 3/8" | 2000 | 22 | 30 | 22 | 43 | 10 | 65 | 2030 |

Technical specifications

• Product type: Vertical level indicator with double electrical contact
• Model / series: GLVE
• Material: polycarbonate tube (supplied)
• Recommended working temperature: 0°C – +80°C
• Function: electrical sensor signals MIN and MAX fluid levels; contacts normally open and close at MIN or MAX
• Available lengths: from 200 mm to 2000 mm (customizable on request)
• Supply: supplied complete with connectors
• Electrical maximum load: AC up to 140 V – 0.5 A – 10 W; DC up to 200 V – 0.5 A – 10 W
• Precautions: avoid contact with alcohol, trichloroethylene, solvents, petrol, glycol and petroleum
• Options: nickel-plated brass screws available for special applications (e.g., water)
• Technical table (TYPE / CODE / a / L / e / q / d / c / f / s / l / WEIGHT (g)) available in product data
• Brand: Mintor Srl
