Field preparation leveler M series
hydraulic

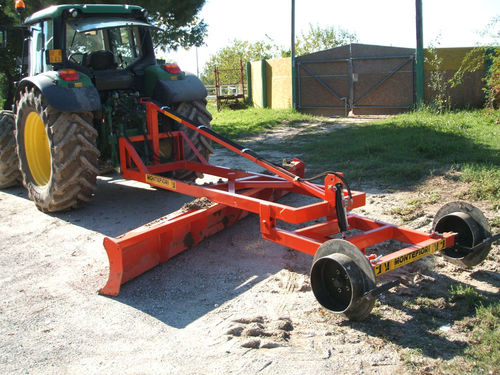

Field preparation leveler - M series - MONTEFIORI Srl - hydraulic

Field preparation leveler - M series - MONTEFIORI Srl - hydraulic - image - 2

Field preparation leveler - M series - MONTEFIORI Srl - hydraulic - image - 3

Field preparation leveler - M series - MONTEFIORI Srl - hydraulic - image - 4

Field preparation leveler - M series - MONTEFIORI Srl - hydraulic - image - 5

Field preparation leveler - M series - MONTEFIORI Srl - hydraulic - image - 6

Add to favorites

Compare this product

Characteristics

Application: for field preparation
Other characteristic: hydraulic
Blade width: 4 m, 5 m
(13'01" , 16'04" )

Description

UNIVERSAL GRADER COMPLETELY CONVERTIBLE HYDRAULICALLY. The only machine with the advantage of being converted in two versions, connected to powerlift or towed. Technical spécifications • Convertible: towed /powerlift . Power 75/100 HP (mod. M4) - 120/160 HP (mod. M5) • Blade width 4.00 m (mod. M4) - 5.00 m (mod. M5) • Width wheels in working trim 2.60 m (mod. M4) - 2.70 m (mod. M5) • Overall dimensions in road trim 1.60 / m 2:40 • Height blade 00.45 m (mod. M4) - 0.50 m (mod. M5) • Overall length + drawbar4.50 + 1.10 m. (mod. M4) - 5.00 + 1.10 m. (mod. M5) . WEIGHT 900 kg (mod. M4) - 1200 kg (mod. M5) • Type and number of the wheels 10.0/75-15.3 No. 2
