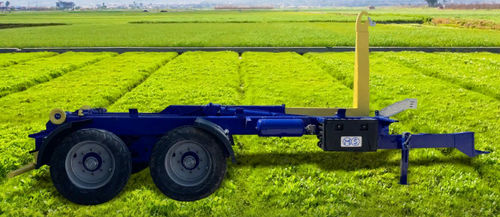

Hook lift trailer GCT series
tandem axleagricultural14 tons

hook lift trailer
hook lift trailer
Add to favorites
Compare this product


Characteristics

Construction
hook lift
Number of axles
tandem axle
Application
agricultural
Payload
14 tons

Description

Variations GCT-140 Châssis Spécifications Gross Weight:Dépend on Country Conditions Maximum looding:14000 Kg. Moximum Tipping And Angle:14000 Kg. ■ 49-52 Degrees Mo$s Weight:Approx. 3170 Kg. Drowbor Weight:3500-4000 Kg. Hook Hight HH mm:Dépend On Countriy Reguest Usage Area UA mm:Dépend On Countriy Request Towing Eye Height:500-700 mm Towing Eye Copacity ond Diometer:14 Tone ond 50 mm 0 Axle Copocity:8 Tonex2 Pièces Tyre Type:455x65 R22,5 (4.375 Kg Looding Copacity) Broke:Air or Hydraulic Broke System Hydraulic Spécifications Connection to Troctor - By Drive Shoft or Directty Hydroulic Connection to Troctor Control Volve Min. Need Power:80 kW (110 HP) Cylinders:2 Units Main, 1 Unit Stiding, 1 Unit Lock CyUnder OU Requirement:70 U. Working Pressure:250 Bor Accessories Components Mudgord:2 Sets (P/ostik or Steel Combination) ToolBox:1 Pièce Woter Tonk:1 Piece Wheel Chock:ISet
