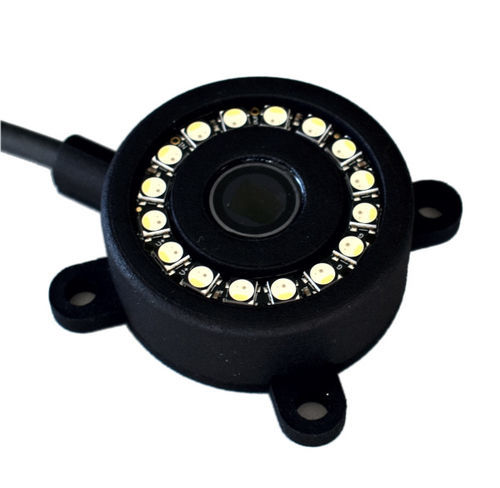

Ground speed sensor OptoSpeed

OptoSpeed is a new optical movement detector for contactless measurement of low speed and distance travelled. Speed range is from 0.01 up to 20 km/h. Applications are manifold e.g. industrial indoor on fork lifts, driverless transportation vehicles/machines/AGVs. OptoSpeed provides for the speed signal in XY direction, meaning in mounting direction forward and perpendicular sideways movement. Scope of applications - A new solution for contactless true ground speed measurement and movement detection at low speed from 0.01 up to 20 km/h. - Precise noncontact measurement of true speed over ground in X and Y direction. - Independent on traction (wheel, tire, track) slip & slide, effective tire circumference and sinking in of tires/tracks. - High dynamics and data rate for monitoring, control and closed loop control industrial automation applications. - Simple mounting in parallel to the surface being measured. - Linear correlation between mounting height to the surface and speed output. - True speed over ground for slip, slide and traction closed-loop control applications. - True speed over ground for effective breaking improvement. Technical data - Power supply: +9 VDC up to +28 VDC - Current supply: < 200 mA - Temperature: Storage: -40°C up to +85°C, Operation: -20°C up to +70°C - Optical aperture angle: 12° - Output Signals: Quadrature Encoder XY Signals @ 5,000 pulses/m, also differential and serial RS232 data stream - Update Rate of output signal: 10 Hz - Speed Range: From 0.01 up to 20 km/h at 100 mm distance to surface - Sensor Configuration: Optical motion tracking System with LED lighting - System Accuracy: 0.1 % F.R. - Dimensions: Diameter min. 60 mm, max. 73.5 mm with mounting straps less cable, 22.5 mm height - Connections: Cable with molded DIN M12 Connector, 12 Pin - Installation: Mounting in parallel to the surface with free view onto the detection area. Distance between 50 up to 400 mm - Warranty: 2 Years - Environmental Protection: IP6KX, IPX7, IPX8 acc. to ISO 20653
