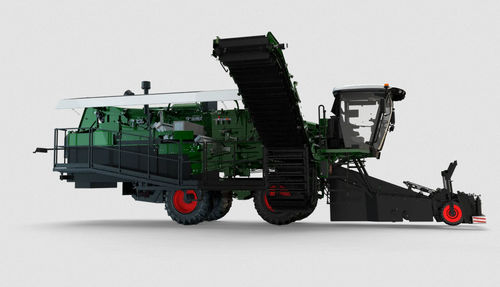

Tomato harvesting machine THR 650S

self-propelled2-rowwith belt conveyor

Product overview
The THR650S is a tomato harvester engineered for high-throughput, quality harvesting up to 70 t/h in ideal conditions. Key on-board systems include a 1.2 m motorised helical shaker, a 40-channel S400 optical sorter with remote monitoring, powerful hydrostatic traction and a VOLVO Stage V engine optimized for low-rev torque.

Main features

• PEDOL cab: modern, soundproof, shock‑absorbed and suspended cab with pneumatic driver seat and advanced air filtration for dust, pollen and chemical protection.
• 1200 mm shaker: motorised helical shaker with adjustable vibration and cab control to minimise fruit damage and fuel consumption.
• Harvest head 1200 mm: high‑performance head for double‑row tomato planting with large augers, extended fingers and short mouldboards.
• S400 sorter — 40 channels: optical selector on a corrosion‑resistant stainless steel frame; user‑adjustable tolerances, remote monitoring and software updates.
• Hydraulic system: two variable displacement pumps dedicated to belt handling with independent oil management.
• Hydrostatic traction: enlarged hydrostatic traction (100 cc pump / 110 cc engine) for operation in wet/rough soils and higher productivity per hectare.
• VOLVO Stage V engine: high torque at low revs, compliant with Stage V emissions and designed for lower noise.
• Four steering wheels and low‑pressure tyres: reduced soil compaction and improved traction on difficult terrain.
• External oil pipes: steel pipes treated with anti‑corrosive agents to reduce downtime and enable operation at lower temperatures/pressures.
• Sorting area design: operator‑oriented layout to maximise comfort and safety during sorting operations.

Technical data

• Dimensions: H 3.85 m · L 12.00 m · W 3.00 m
• Engine power: 185 kW (252 CV)
• Bar tips width: 150
• Sorting channels: 40
• Shaker width: 1200 mm (1.2 m)
• Harvest capacity: up to 70 t/h (ideal conditions)
• Transmission/traction: hydrostatic traction with 100 cc pump and 110 cc engine
• Hydraulics: two variable displacement pumps; independent oil management
• Wheels/tyres: 4 steering wheels; low‑pressure tyres
• Cab: Pedol soundproof suspended cab with pneumatic seat and advanced filtration

Additional details

• Remote monitoring via Wi‑Fi box for S400 sorter and capability for remote software updates.
• 360° interactive visualization and product video available for component inspection and operator training.
• Control ergonomics: intuitive control panel and multifunction lever positioned for easy operation from the right side.
• Materials and maintenance: corrosion‑resistant stainless steel frames on selectors and external steel oil lines to optimise uptime and service intervals.
