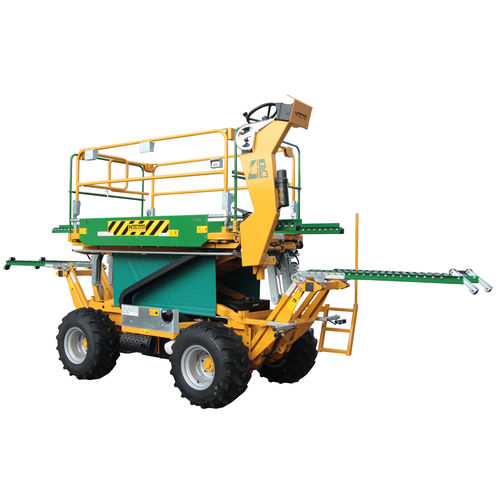

Orchard harvest trolley ZIP 25

self-propelledadjustable-height

Diesel motor Lombardini LDW 1003 HP 21/24 Perkins 403D-11 HP28 diesel Perkins 404D-15 HP35 diesel Traction Hydrostatic on 2 or 4 wheels On request: hydraulic motor with variable cylinder capacity electrically controlled Gears 2 gears + neutral in central posotion - electrical control from control panel Steering with hydraulic power steering on the front wheels - Indipendent steering on the rear wheels (only 4 WD) - with 3 position selector indipendent and/or combined on request Speed min 0 km/h max 15 km/h Brakes hydraulic on the rear wheels-parking/negative brake on 4 wheels on request: (hydraulic brakes in 4 wheels) Fruit collector One central collector with idraulic lift (available size and vertical lift rails can be seen in the diagrams shown below) Detachable footguard. Front lift Hydraulic lift for loading crates up to 500 kg capacity Rear lift Hydraulic motor for unloading crates up to 500 kg capacity Roller rails for crates On the platform with space for 2 crates Length 335 cm. ZIP 25 Length 385 cm. ZIP 30 Pruning equipment C.500/C.600 lt compressor - electromagnetic coupling, control on panel Total capacity of the machine: 13,200 lbs
