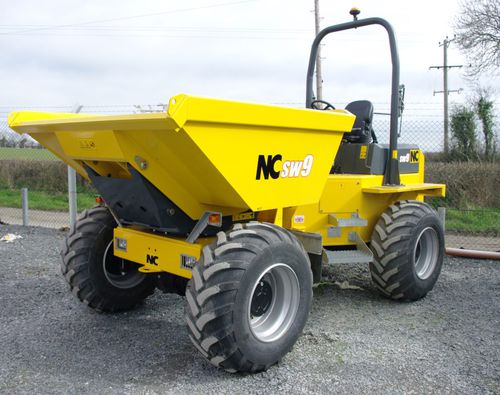

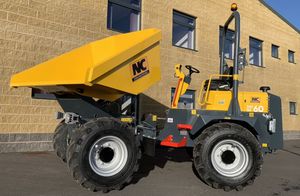

Lift-skip minidumper

rubber-tireddiesel

Powerful, Reliable, Rugged 4 Wheel Drive, 4 speed Powershuttle Dumper (For Non Emissions compliant markets) Power is provided by the JCB Dieselmax 3.6 Engine with 85kW (Eu Stage IIIA emissions) JCB Powershuttle 4 speed transmission Permanent 4 wheel drive. With a steering angle of +/- 36° and gradeability of 50% this makes the 9 Tonne series dumper the perfect bulk carrier. 4 speed 0-32kph ideal for covering large areas Steering: Priority load sensing hydrostatic centre pivot Working brakes: Multi-plate oil immersed discs mounted on both axles Park brake: Hand operated locking on a dry disc acting on the gearbox Two versions Front Tip and Powerswivel FEATURES Unrivalled operator accessibility and comfort Power swivel skip enabling discharge either side Excellent rough terrain performance from permanent 4-wheel drive Heavy duty construction; skip manufactured from 8 mm steel plate and reinforced around top Column operated forward and reverse directions with acceleration by foot pedal Simple and safe operation; drive direction on the steering column Heavy duty all steel centre console for increased leg protection Simple instrument panel including fuel gauge, hourmeter, warning lights for-parking brake, oil temperature, oil pressure, engine temperature Folding ROPS as standard Easy access to engine compartment for service and maintenance Recovery bracket as standard Excellent power to weight ratio Ample ground clearance Superior turning circle Skip swivels over 180º for easy placement when driving along trenches (185º maximum) Skip tips over 90º Reversing alarm standard Handbrake safety device – will not move until released
