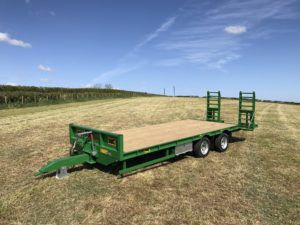

Flatbed trailer Low Loaders
mountedtandem axle3-axle

flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
Add to favorites
Compare this product


Characteristics

Construction
flatbed
Type
mounted
Number of axles
tandem axle, 3-axle
Application
agricultural
Payload
22 tons, 25 ton
Brake system
with hydraulic braking
Other characteristic
equipment, tracked

Description

A height adjustable, sprung drawbar is standard on all 16, 22 and 25 Ton models. The flatbed floor is fitted out with 50mm softwood timber along its entire length with the beaver tail steel chequer plated for extra durability. Grip bars are welded to the beaver tail to provide extra grip for tracked machines. Standard ramps are 700mm (2’4” wide) enabling even narrow machines to load onto a standard trailer. Ramps are spring assisted to ease raising and lowering. All main models use two or three 8-stud 90mm axles rated to 40kph and fitted with 215/75×17.5 twin tyres. These are mounted on 80mm springs on the 16 and 22 Ton models and 100mm springs on the 25 Ton. The underslung suspension set-up gives good ground clearance whilst maintaining a low bed height. Hydraulic brakes are standard using 25mm brake rams and sprung release. A lockable toolbox is fitted to the kerbside of the trailer for storage of chains etc and crash bars are fitted along both sides. Rope hooks and chime bars are fitted closely along both sides of the trailer providing plenty of securing points for different types of loads. Options: • - Outriggers • - Hydraulic ramps • - Durbar or timber sheeted ramps • - 28mm hardwood fioor • - 3'2" or 3'6"wide ramps • - Longer flatbed • - High speed 8-stud 100mm axles rated to 105kph • - Air brake or dual air/hydraulic brakes • - .ABS brakes and/or load sensïng for brakes • - Air suspension 235x75x17.5 or 445x45x19.5 tyres • - Loadair hydraulic le^elling tail • - Removable baie rack on headboard • - Commercial style ’cuf châssis
